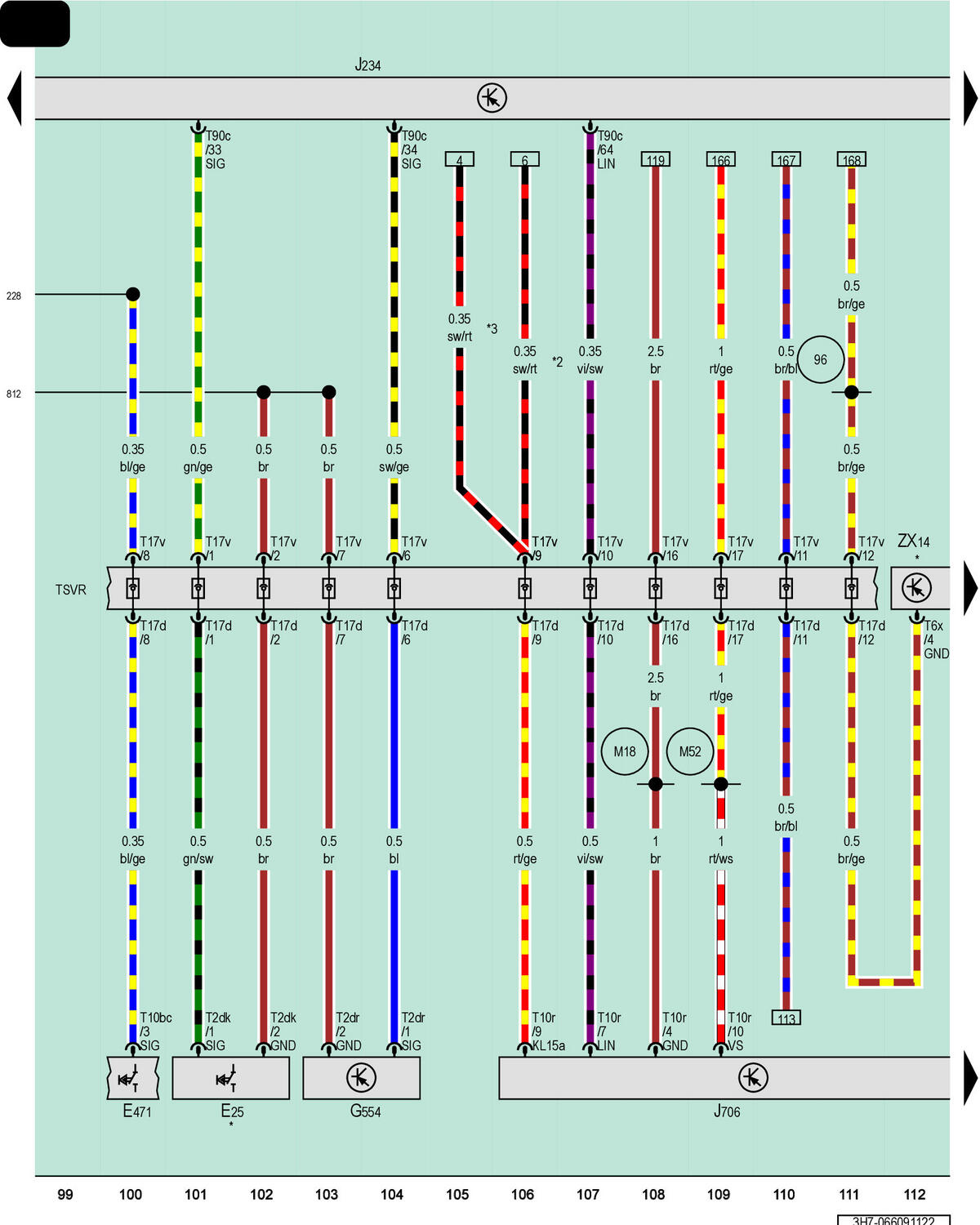

Front Passenger Seat Belt Switch, Front Passenger Seat Adjustment Control Head, Front Passenger Seat Position Sensor, Airbag Control Module, Seat Occupant Detection System Control Module, Front Passenger Seat Heating Element With Passenger Occupant Detection System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E25

Front Passenger Seat Belt Switch

E471

Front Passenger Seat Adjustment Control Head

G554

Front Passenger Seat Position Sensor

J234

Airbag Control Module

J706

Seat Occupant Detection System Control Module

T2dk

2-Pin Connector, Black

T2dr

2-Pin Connector, Black

T6x

6-Pin Connector, Black

T10bc

10-Pin Connector, Black

T10r

10-Pin Connector, Black

T17d

17-Pin Connector, Red

T17v

17-Pin Connector, Red

T90c

90-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

ZX14

Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module

96

Ground Connection 1 (in Heated Seats Wiring Harness)

228

Connection (in Wiring Harness)

812

Ground Connection 3 (in Airbag Wiring Harness)

M18

Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)

M52

Connection 2 (in Front Passenger Seat Wiring Harness)

*

Pre-Wired Component

*2

Through July 2022

*3

From July 2022
