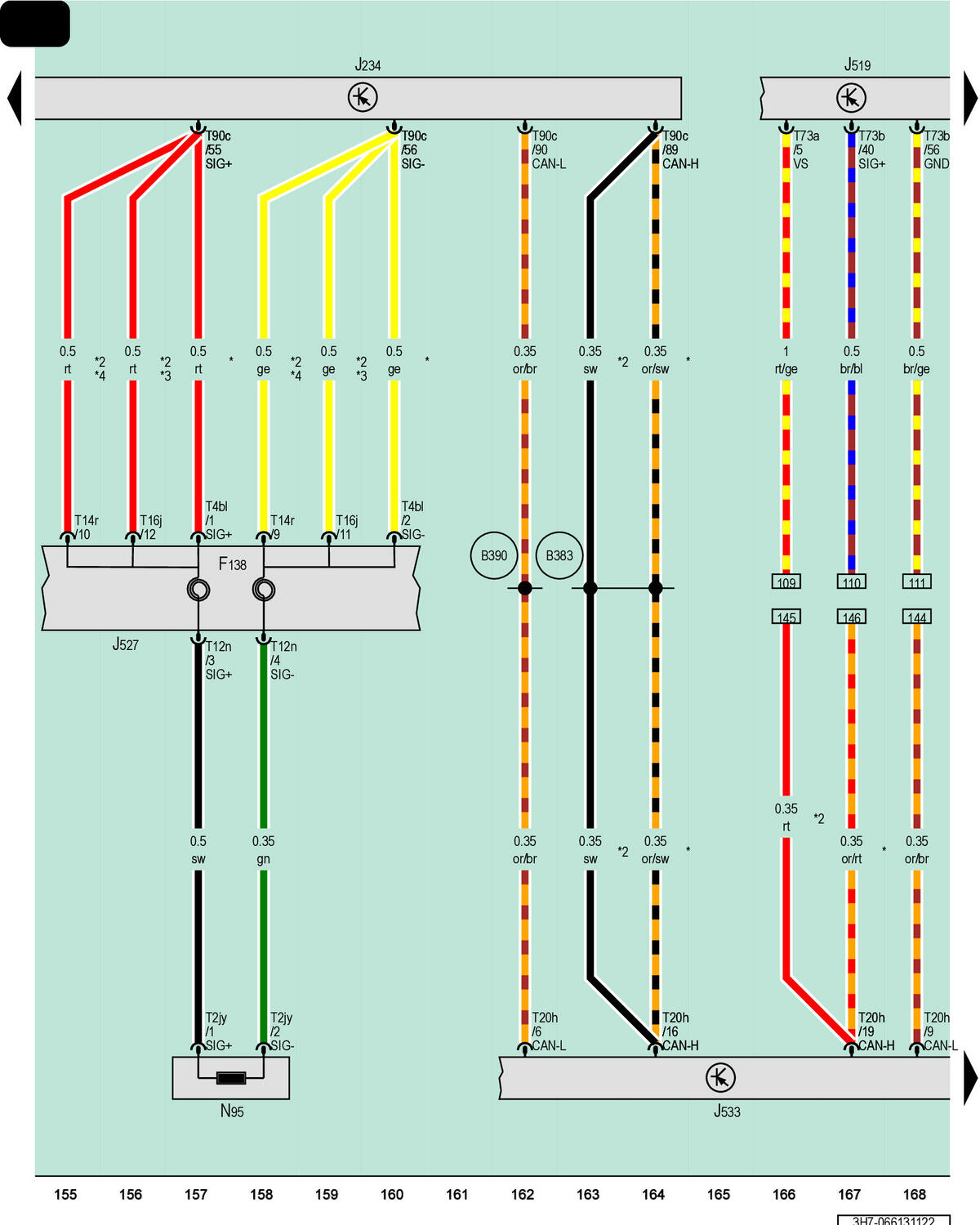

Airbag Spiral Spring/Return Spring With Slip Ring, Airbag Control Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Driver Airbag Igniter
F138
Airbag Spiral Spring/Return Spring with Slip Ring
J234
Airbag Control Module
J519
Vehicle Electrical System Control Module
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
N95
Driver Airbag Igniter
T2jy
2-Pin Connector, Black
T4bl
4-Pin Connector, Yellow
T12n
12-Pin Connector, Black
T14r
14-Pin Connector, Black
T16j
16-Pin Connector, Black
T20h
20-Pin Connector, Red
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
T90c
90-Pin Connector, Yellow
B383
Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)
B390
Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)
*
Through July 2018
*2
From July 2018
*3
For Vehicles Without Heated Steering Wheel
*4
For Vehicles with Heated Steering Wheel
