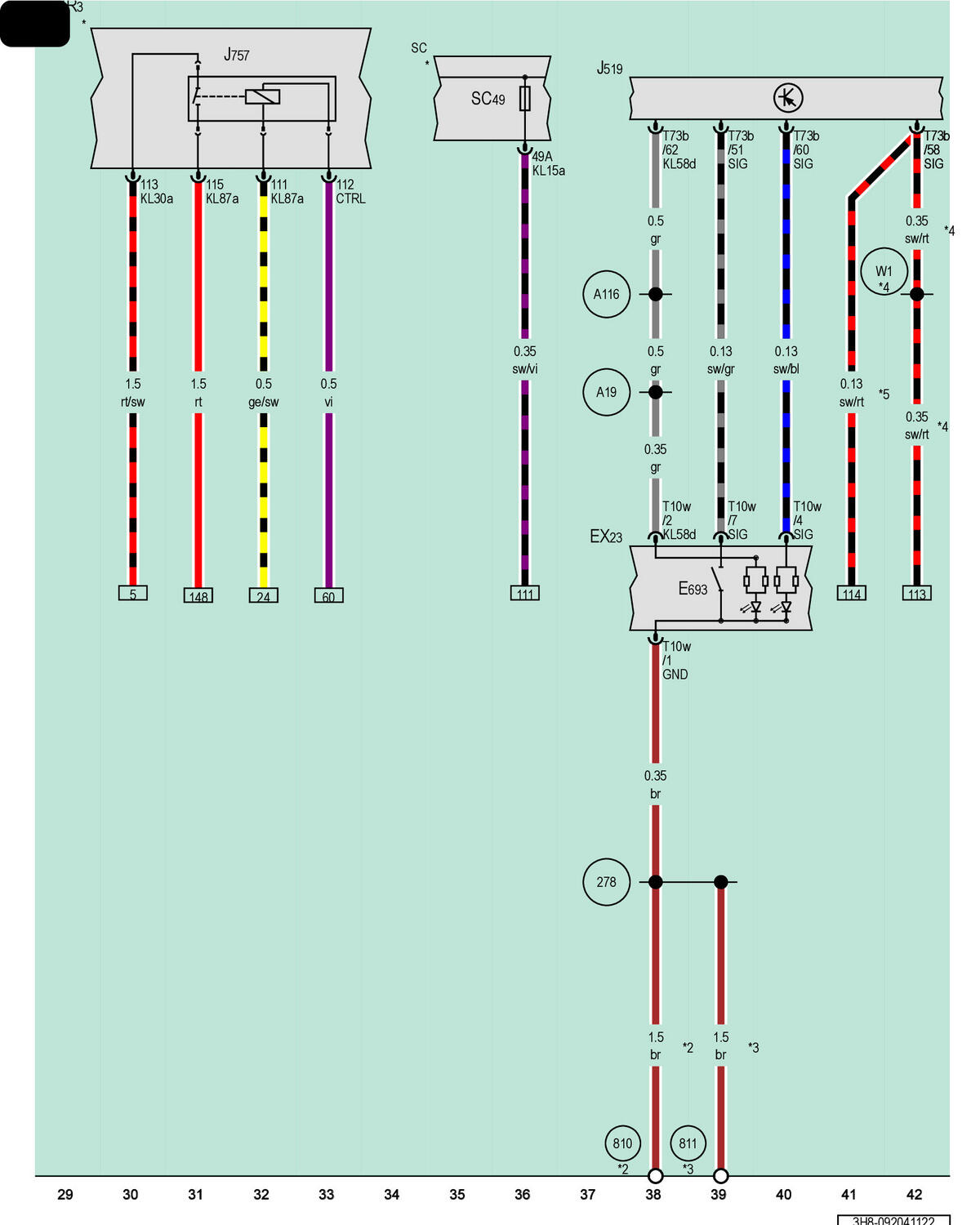

Center Console Switch Module 1, Vehicle Electrical System Control Module, Fuse Panel C, Relay And Fuse Panel 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX23

Center Console Switch Module 1

E693

Start/Stop Mode Button

J519

Vehicle Electrical System Control Module

J757

Engine Component Power Supply Relay

Fuse Panel C

SR3

Relay and Fuse Panel 3

SC49

Fuse 49 (On Fuse Panel C)

T10w

10-Pin Connector, Black

T73b

73-Pin Connector, Black

278

Ground Connection 4 (in Interior Wiring Harness)

810

Ground Connection on Left Center Instrument Panel Central Tube

811

Ground Connection on Right Center Instrument Panel Central Tube

A19

Connection 58d (in Instrument Panel Wiring Harness)

A116

Connection 58d (in Instrument Panel Wiring Harness) 2

Positive Connection 1 (54) (in Rear Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

For LHD Vehicles

For RHD Vehicles

For Vehicles with Trailer Socket

For Vehicles Without a Trailer Socket
