Overview - EVAP System, With Fuel Tank Leak Detection

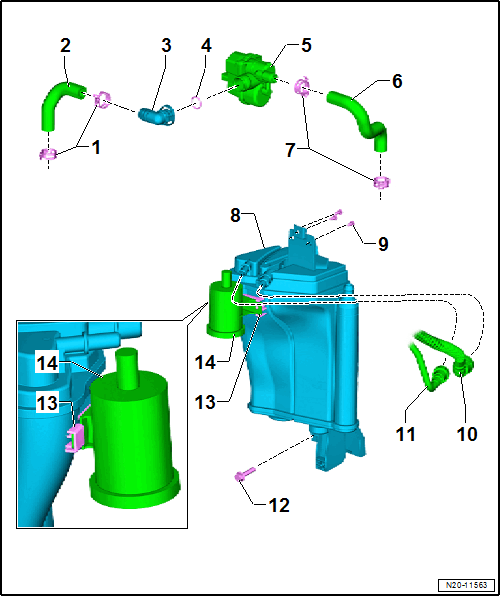

Fig 1: Exploded View Of EVAP System, With Fuel Tank Leak Detection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Hose Clamp
2. Connecting Hose
   • From the air filter to the leak detection pump
3. Connection
4. Seal
   • Replace if damaged
5. Leak Detection Pump
   • Removing and Installing. Refer to LEAK DETECTION PUMP, REMOVING AND INSTALLING .
6. Connecting Hose
   • From the air filter to the leak detection pump
7. Hose Clamp
8. EVAP Canister
   • Component location: behind the wheel housing liner inside right rear wheel housing
   • Removing and Installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, VEHICLES WITH FUEL TANK LEAK DETECTION .
9. Bolts
   • 2.5 Nm
10. Bleeder Line
    • To the fuel tank
11. Bleeder Line
    • To the EVAP Canister Purge Regulator Valve 1 -N80-
12. Bolt
    • 20 Nm
13. Mount
    • For the air filter
14. Air Filter
    • Removing and Installing. Refer to EVAP SYSTEM AIR FILTER, REMOVING AND INSTALLING, VEHICLES WITH FUEL TANK LEAK DETECTION .
