Overview - Left Fuel Delivery Unit/Fuel Level Sensor

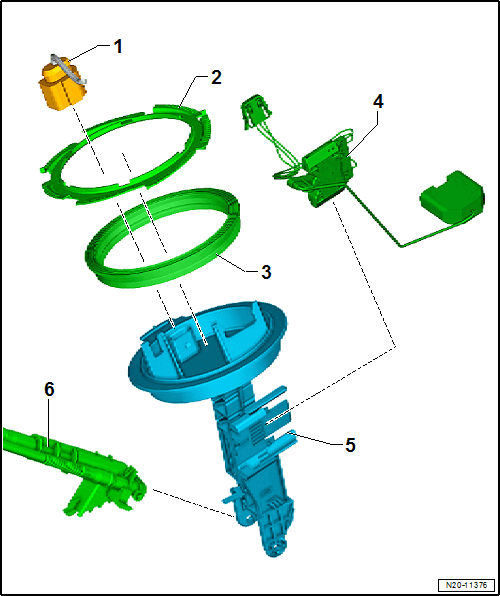

Fig 1: Exploded View Of Left Fuel Delivery Unit/Fuel Level Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Connector
   • Pull on the connector to make sure it is engaged correctly and securely.
2. Locking Ring
   • Loosen and tighten using the Wrench - Fuel Sending Unit:T10202
   • 110 Nm
3. Seal
   • Replace if damaged
   • Install dry
4. Fuel Level Sensor 2 -G169-
   • Removing and Installing. Refer to Fuel Level Sensor 2 -G169-, REMOVING AND INSTALLING .
5. Left Fuel Delivery Unit/Fuel Level Sensor
   • Removing and Installing. Refer to Fuel Level Sensor 2 -G169-, REMOVING AND INSTALLING .
   • Installation position. Refer to Fig 2.
6. Fuel Line
   • For the suction jet pump
   • Removing and Installing. Refer to SUCTION JET PUMP, REMOVING AND INSTALLING .

Fuel Delivery Unit Installation Position

Fig 2: Fuel Delivery Unit Installation Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Version 1:

• The arrow -3- on the fuel tank must point to the mark -2- on the sealing flange -1-.

Version 2:

Fig 3: Fuel Delivery Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The tab -2- on sealing flange must lie between tabs -1- and -3- on the fuel tank.
• The -arrow- points in the direction of travel.
