Parking/Auxiliary Heater Fuel Line, Removing And Installing: Notes

Removing

-- The fuel tank may be a maximum of ³ /₄ full. This ensures the fuel level is below the fuel delivery unit flange.

-- Drain the fuel tank. Refer to FUEL TANK .

-- Remove the cover from the center or right installation opening. Refer to INSTALLATION OPENING COVER, REMOVING AND INSTALLING .

FWD Vehicles:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

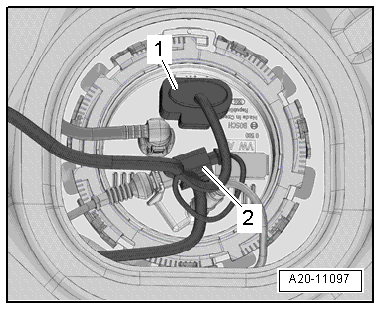

-- Unlock and disconnect the connector -1- from the sealing flange.

-- If equipped, disengage the connector -2- for the parking heater Metering Pump -V54- on the sealing flange and move it to the side.

AWD Vehicles:

Fig 1: Top View Of Fuel Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

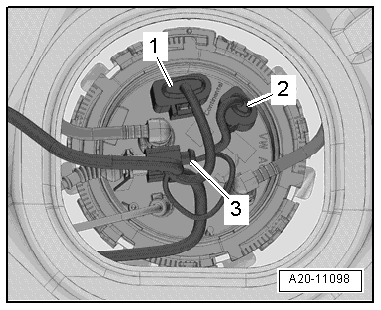

-- Unlock and disconnect the connector -1- and -2- from the sealing flange.

-- If equipped, disengage the connector -3- for the parking heater Metering Pump -V54- on the sealing flange and move it to the side.
