Exhaust Door Control Unit, Removing And Installing: Removing

The Exhaust Door Control Unit -J883- and Exhaust Door Control Unit 2 -J945- will be called exhaust door control unit in the information that follows.

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Disconnect the connector -3-.

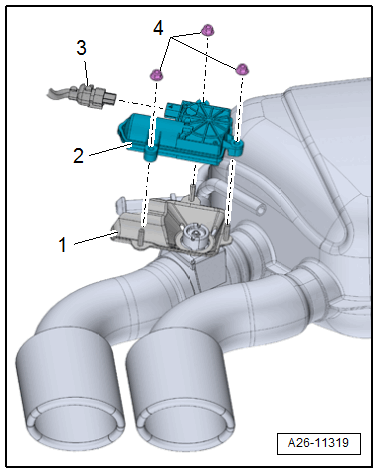

Fig 1: Exhaust Door Control Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -4-.

-- Remove the exhaust door control unit -2-.
