Exhaust Door Control Unit, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Bring the exhaust door control unit into its installed position

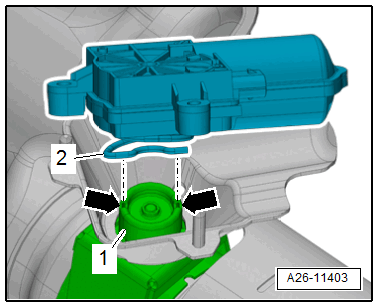

Fig 1: Installing Exhaust Door Control Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

• The spring -2- must engage the groves -arrows- of the exhaust door -1-.
