Catalytic Converter, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

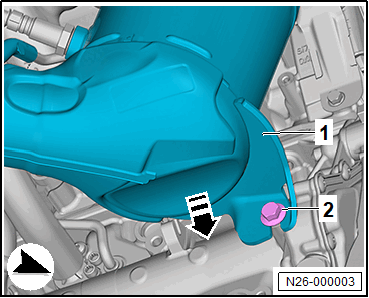

-- Loosely install the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the catalytic converter -1- in direction of -arrow-.

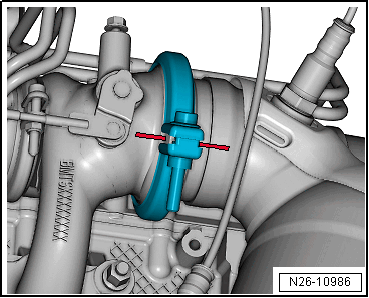

-- Align the clamp to the marking.

Fig 1: Positioning the Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

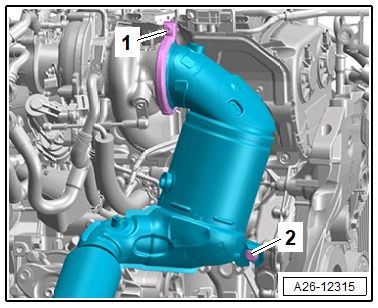

-- Tighten the clamp -1- and the bolt -2-. Refer to Overview - Emissions Control System  .

Fig 2: Catalytic Converter - Tightening Specification and Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Refer to Exhaust System, Installing without Tension  .
