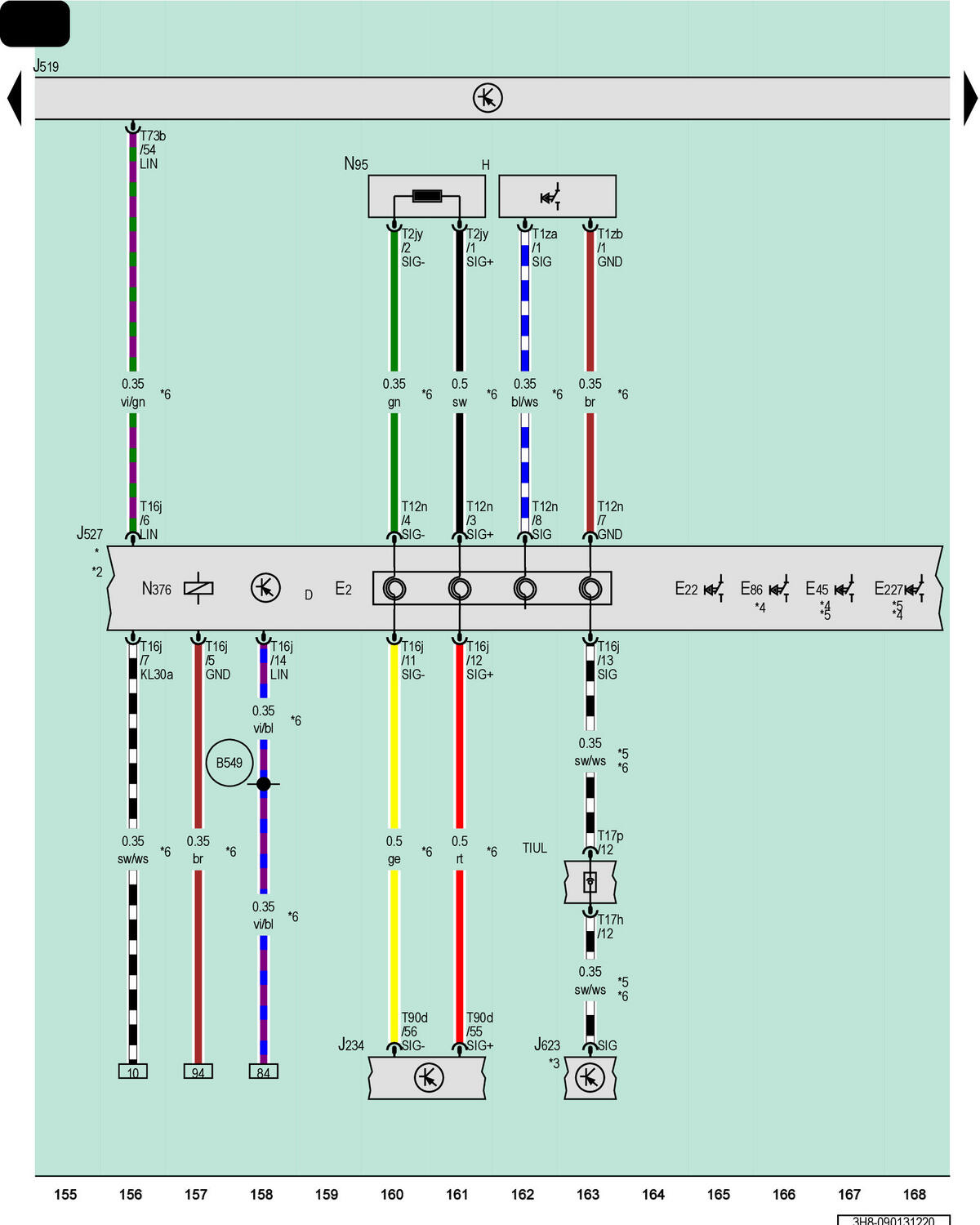

Signal Horn Activation, Airbag Control Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module, Driver Airbag Igniter, Ignition Switch Key Lock Solenoid

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D

Ignition/Starter Switch

E2

Turn Signal Switch, Left

E22

Windshield Wiper Intermittent Mode Switch, Right

E45

Cruise Control Switch, Left

E86

Multifunction Indicator Selection Switch, Right

E227

Cruise Control -Set- Button, Left

H

Signal Horn Activation

J234

Airbag Control Module

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module

N95

Driver Airbag Igniter

N376

Ignition Switch Key Lock Solenoid

T1za

1-Pin Connector, Cable Shoe

T1zb

1-Pin Connector, Cable Shoe

T2jy

2-Pin Connector, Black

T12n

12-Pin Connector, Yellow

T16j

16-Pin Connector, Black

T17h

17-Pin Connector, Blue

T17p

17-Pin Connector, Blue

T73b

73-Pin Connector, Black

T90d

90-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

B549

LIN Bus Connection 2 (in Main Wiring Harness)

*

Refer to Applicable Steering Column Electronics Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Multifunction Steering Wheel

*3

Refer to Applicable Engine Wiring Diagram

*4

For Vehicles Without Multifunction Steering Wheel

*5

For Vehicles with Cruise Control System

*6

For Vehicles Without Heated Steering Wheel
