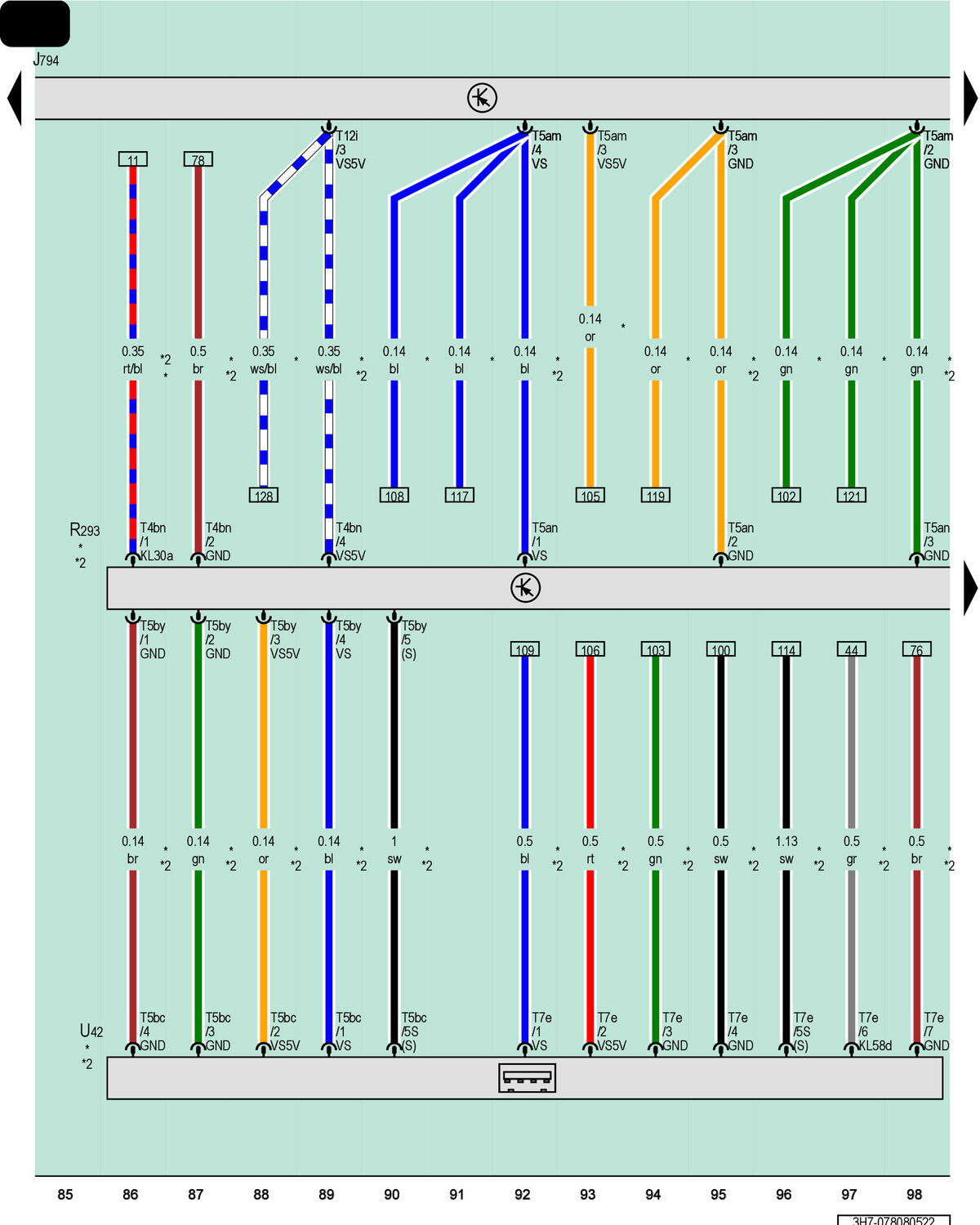

Information Electronics Control Module 1, USB Distributor, USB Connection 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

R293

Usb Distributor

T4Bn

4-Pin Connector, Red

T5Am

5-Pin Connector, Yellow

T5An

5-Pin Connector, Green

T5Bc

5-Pin Connector, Green

T5By

5-Pin Connector, Brown

T7E

7-Pin Connector, Green

T12I

12-Pin Connector, Green

U42

Usb Connection 2

*

Depending On Equipment

*2

Through July 2022
