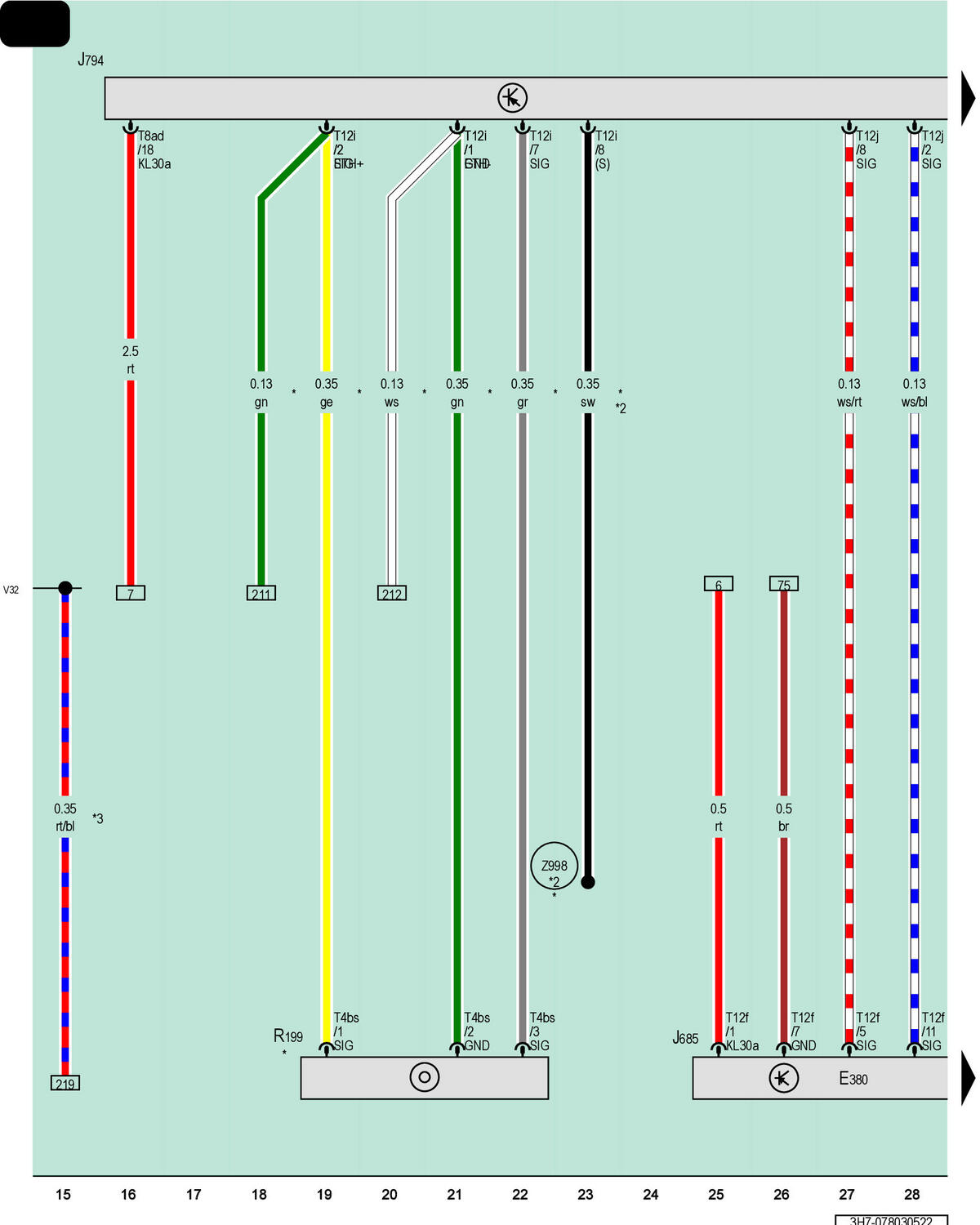

Front Information Display Control Head, Information Electronics Control Module 1, External Audio Source Connection, Cable Shield

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E380

Multimedia System Control Head

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

R199

External Audio Source Connection

T4Bs

4-Pin Connector, Black

T8Ad

8-Pin Connector, Black

T12F

12-Pin Connector, Black

T12I

12-Pin Connector, Green

T12J

12-Pin Connector, Gray

V32

Positive Connection (30 (In Telephone Wiring Harness)

Z998

Cable Shield

*

Depending On Equipment

*2

Open Wire End

*3

For Vehicles With Tv Tuner
