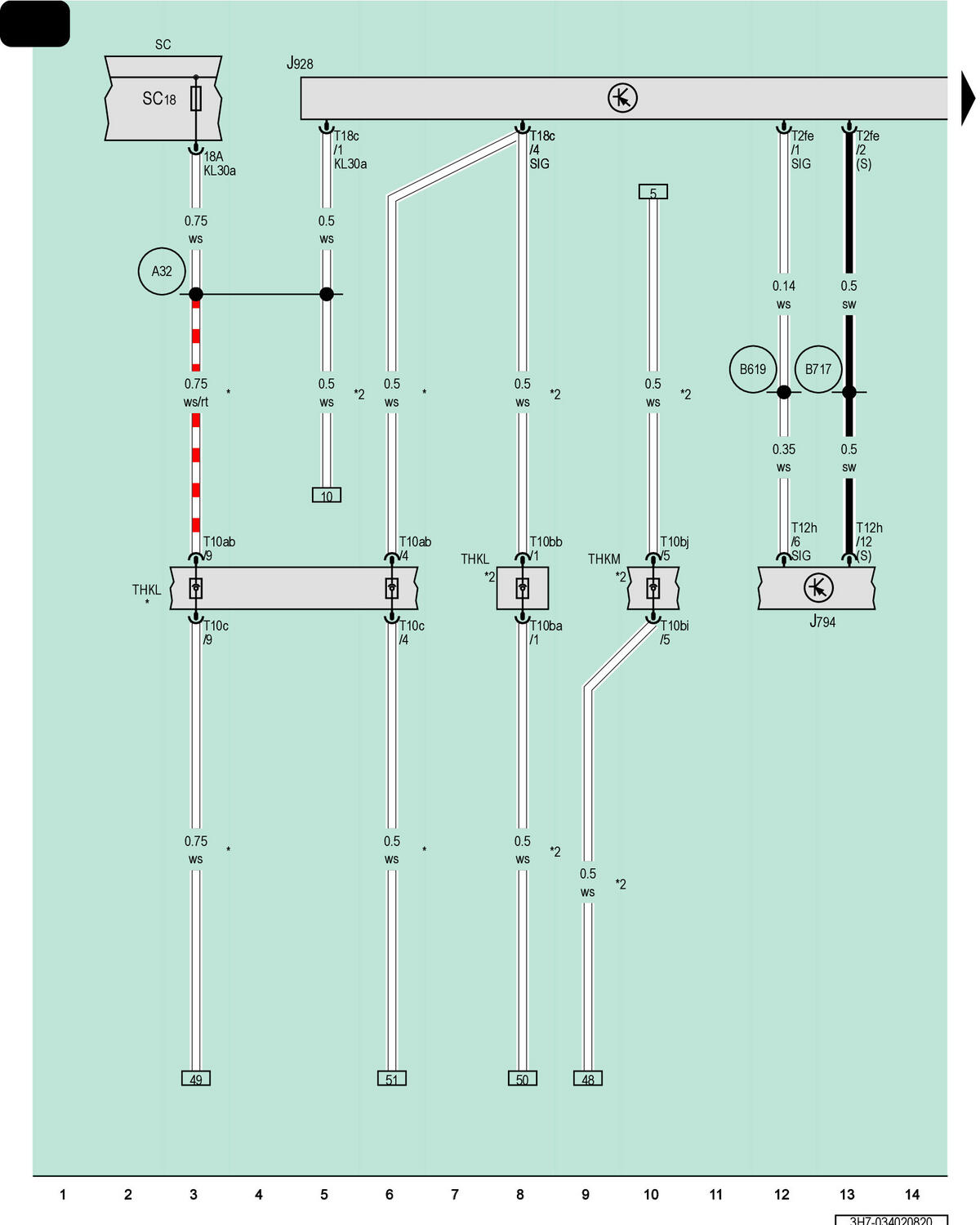

Information Electronics Control Module 1, Peripheral Camera Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

J928

Peripheral Camera Control Module

SC

Fuse Panel C

SC18

Fuse 18 (On Fuse Panel C)

T2fe

2-Pin Connector, Green

T10ab

10-Pin Connector, Brown

T10ba

10-Pin Connector, Blue

T10bb

10-Pin Connector, Blue

T10bi

10-Pin Connector, Black

T10bj

10-Pin Connector, Black

T10c

10-Pin Connector, Brown

T12h

12-Pin Connector, Blue

T18c

18-Pin Connector, Black

THKL

Coupling Point on Rear Lid, Left

THKM

Coupling Point on Rear Lid, Center

A32

Positive Connection (30) (in Instrument Panel Wiring Harness)

B619

Parking Aid Connection (in Interior Wiring Harness)

B717

Parking Aid Connection (in Main Wiring Harness)

*

Sedan

*2

Sportback
