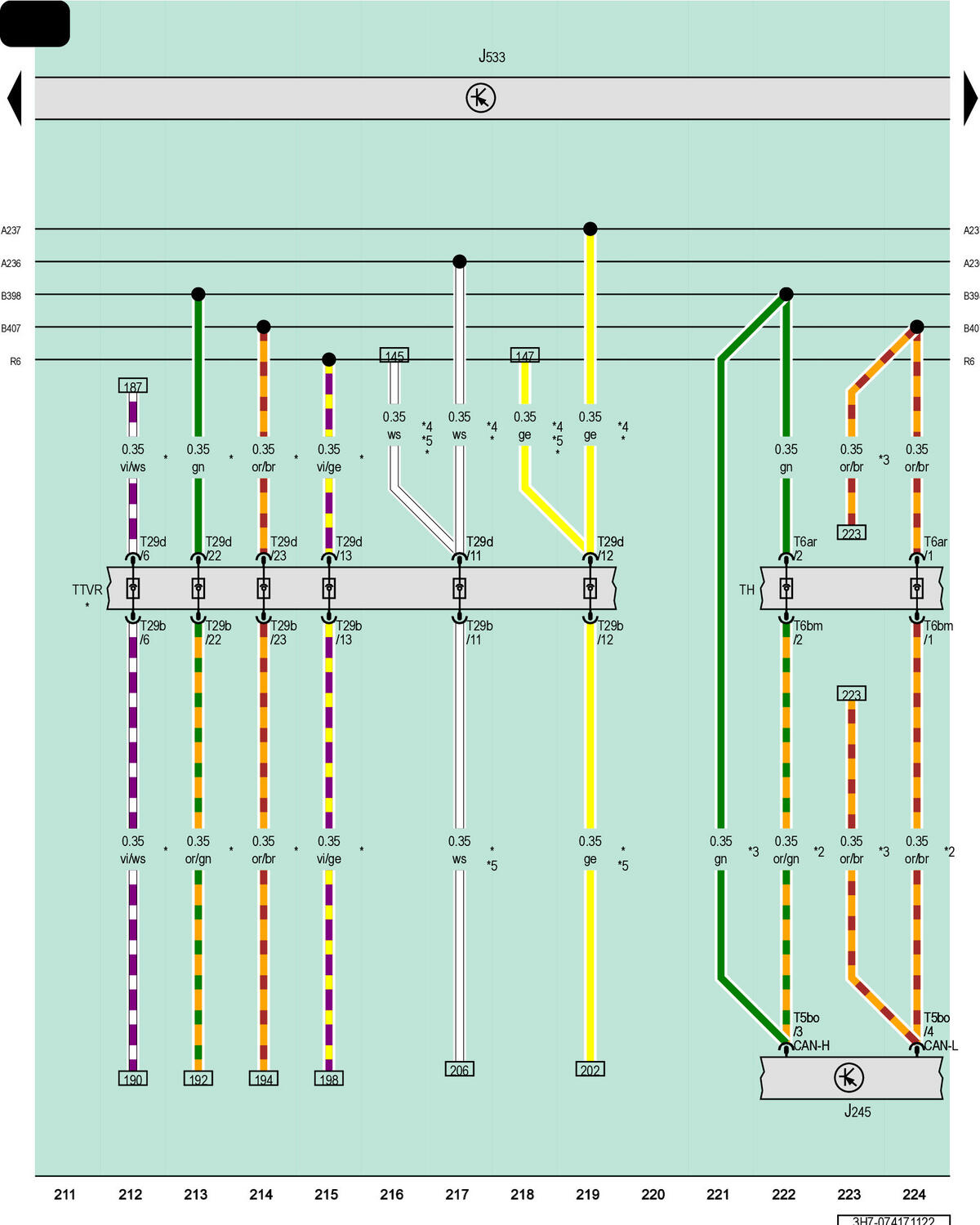

Sunroof Control Module, Data Bus On Board Diagnostic Interface
J245
Sunroof Control Module
J533
Data Bus on Board Diagnostic Interface
T5bo
5-Pin Connector, Black
T6ar
6-Pin Connector, Black
T6bm
6-Pin Connector, Black
T29b
29-Pin Connector, White
T29d
29-Pin Connector, White
TH
Coupling Point on Roof
TTVR
Right Front Door Coupling Point
A236
CAN Bus Drive High Connection 1 (in Instrument Panel Wiring Harness)
A237
CAN Bus Drive Low Connection 1 (in Instrument Panel Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
R6
Positive Connection 1 (in Interior Lamp Wiring Harness)
*
For Vehicles with Peripheral Camera
*2
Sedan
*3
Sportback
*4
For RHD Vehicles
*5
For Vehicles with Near Field Communication
