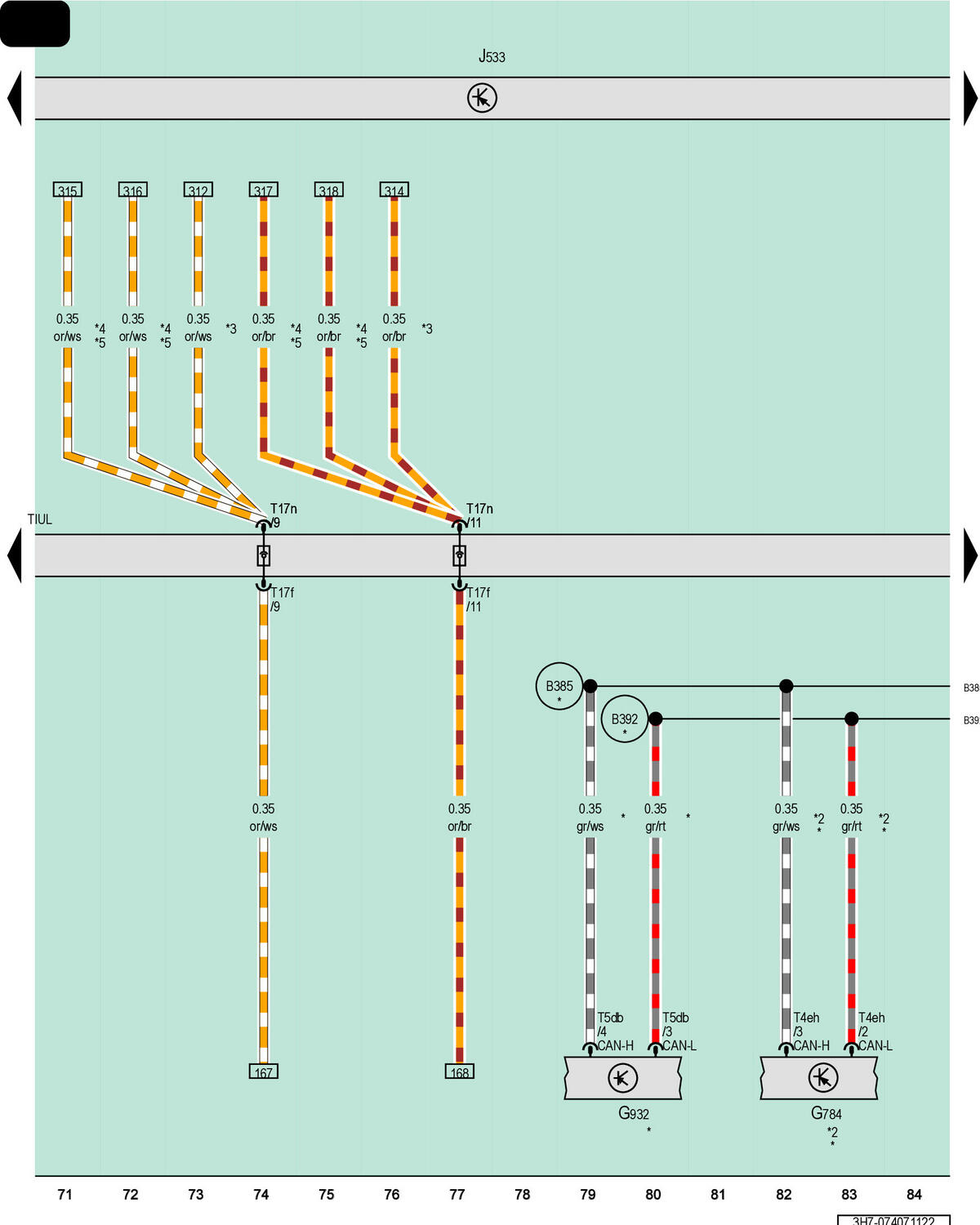

Particulate Sensor, NOX Sensor 3, Data Bus On Board Diagnostic Interface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G784

Particulate Sensor

G932

NOx Sensor 3

J533

Data Bus on Board Diagnostic Interface

T4eh

4-Pin Connector, Black

T5db

5-Pin Connector, Black

T17f

17-Pin Connector, Brown

T17n

17-Pin Connector, Brown

TIUL

Coupling Point in Interior, Bottom Left

B385

Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)

B392

Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Engine Wiring Diagram

*2

For Emissions Standard Euro 6 AG/H/I

*3

Sedan

*4

Depending on Equipment

*5

Sportback
