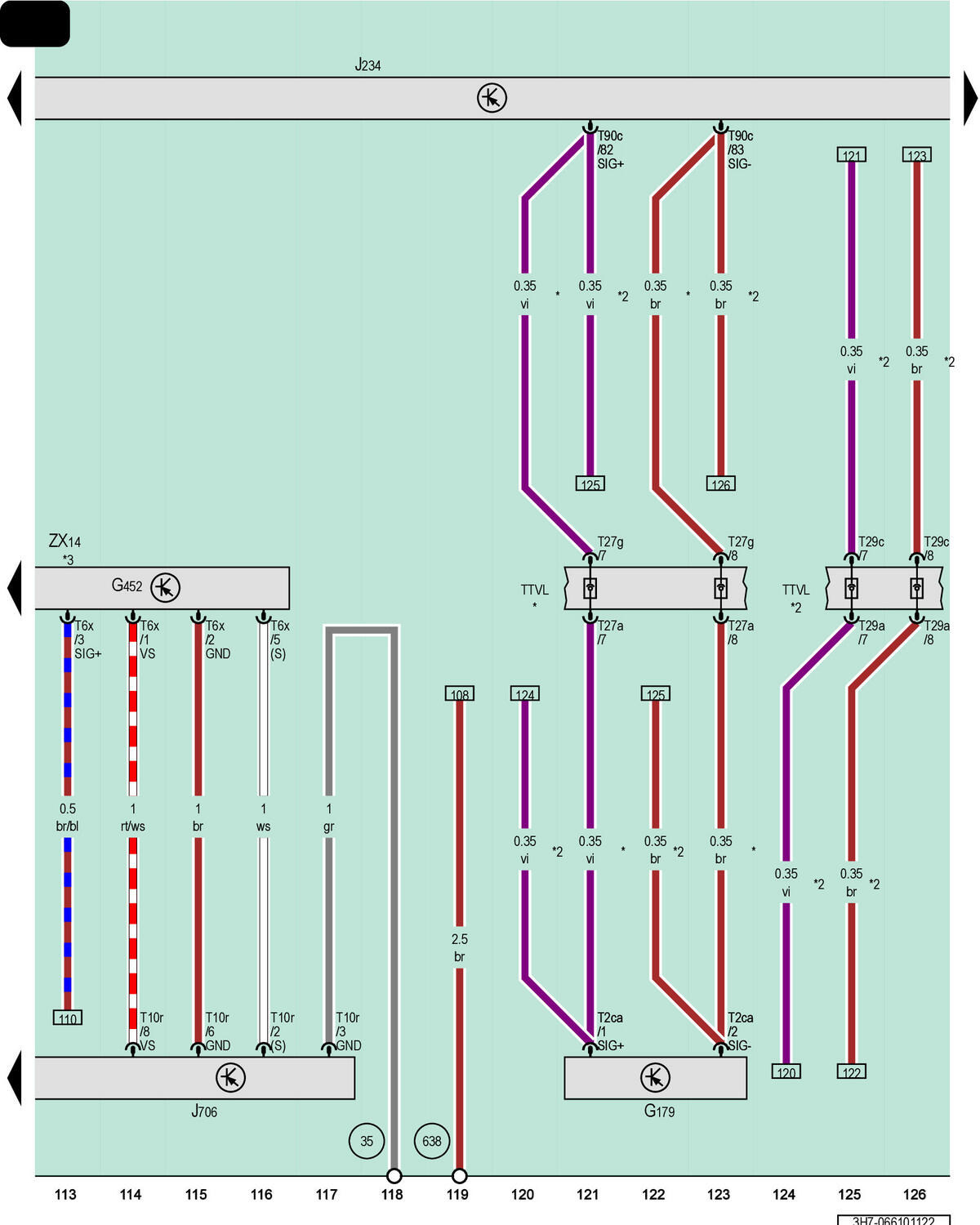

Driver Thorax Airbag Crash Sensor, Seat Occupant Detection System Pressure Sensor, Airbag Control Module, Seat Occupant Detection System Control Module, Front Passenger Seat Heating Element With Passenger Occupant Detection System Control Module
G179
Driver Thorax Airbag Crash Sensor
G452
Seat Occupant Detection System Pressure Sensor
J234
Airbag Control Module
J706
Seat Occupant Detection System Control Module
T2ca
2-Pin Connector, Yellow
T6x
6-Pin Connector, Black
T10r
10-Pin Connector, Black
T27a
27-Pin Connector, Black
T27g
27-Pin Connector, Black
T29a
29-Pin Connector, White
T29c
29-Pin Connector, White
T90c
90-Pin Connector, Yellow
TTVL
Left Front Door Coupling Point
ZX14
Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module
35
Ground Connection Under Front Passenger Seat
638
Ground Connection on Right A-Pillar
*
For Vehicles without Peripheral Camera
*2
For Vehicles with Peripheral Camera
*3
Pre-Wired Component
