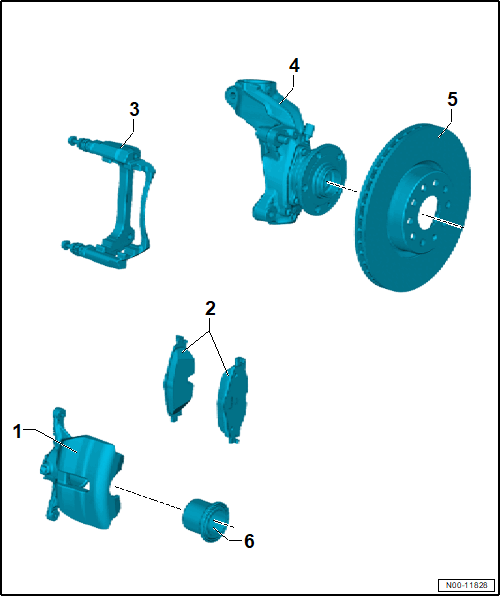

Front Brakes
| Item | PR Number | 1ZC / 1ZK / 1ZA / 1ZD / 1ZG / 1ZL | 1LA / 1LB | |
|---|---|---|---|---|
| 1 | Brake Caliper | PC 57 (16) | C60 (17) | |
| 2 | Brake pad, thickness | mm | 14 (0.55 in.) | 13 (0.51 in.) |
| Brake pad, wear limit without backing plate | mm | 2 (0.08 in.) | 2 (0.08 in.) | |
| 3 | Brake Rotor | diameter in mm | 312 (12.28 in.) | 340 (13.39 in.) |
| Brake rotor, thickness | mm | 25 (0.98 in.) | 30 (1.18 in.) | |
| Brake rotor, wear limit | mm | 22 (0.87 in.) | 27 (1.06 in.) | |
| 4 | Brake caliper, piston | diameter in mm | 57 (2.24 in.) | 60 (2.36 in.) |
