Overview - Rear Speed Sensor, AWD

The overview shows the left side of the vehicle as an example

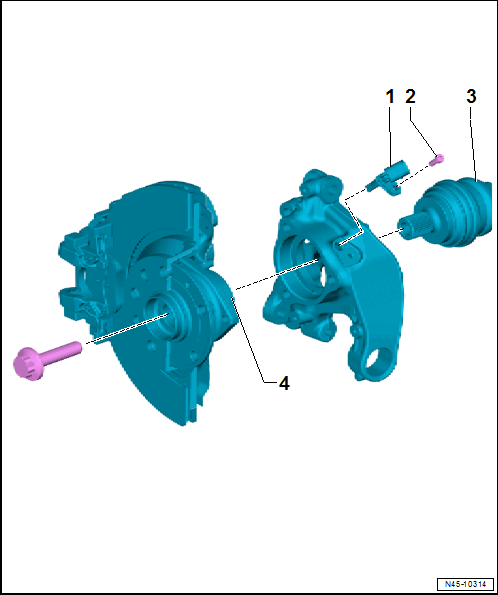

Fig 1: Exploded View Of Rear Axle Speed Sensor (AWD) With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46-
   • Clean the inner surface of the hole before inserting the sensor
   • Coat the inner surface with Hot Bolt Paste:G 052 112 A3
   • Removing and Installing. Refer to RIGHT AND LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING .
2. Bolt
   • 8 Nm
3. Drive Axle
   • Overview. Refer to OVERVIEW - DRIVE AXLE .
   • Removing and Installing. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
4. Wheel Hub with Wheel Bearing Unit
   • The ABS sensor ring is integrated in the wheel bearing unit
   • Check the ABS sensor ring. Refer to ABS SENSOR RING, CHECKING .
   • Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
