Brake Lines, Attaching To Hydraulic Unit, RHD
On the hydraulic unit:
1 - Hydraulic Unit to Left Rear Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
2 - Hydraulic Unit to Right Front Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 short thread
3 - Hydraulic Unit to Left Front Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
4 - Hydraulic Unit to Right Rear Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 short thread
A - Hydraulic Unit to Master Brake Cylinder Primary Piston Circuit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
B - Hydraulic Unit to Master Brake Cylinder Secondary Piston Circuit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread

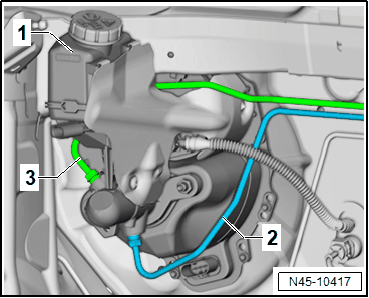

On the brake master cylinder:
1 - Brake master cylinder/brake booster
2 - Brake master cylinder/primary piston circuit to hydraulic unit
3 - Brake master cylinder/secondary piston circuit to hydraulic unit
Tightening Specifications
