Brake Lines, Attaching To Hydraulic Unit, LHD
On the hydraulic unit:
1 - Hydraulic Unit to Right Rear Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 short thread
2 - Hydraulic Unit to Left Front Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
3 - Hydraulic Unit to Right Front Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 short thread
4 - Hydraulic Unit to Left Rear Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
5 - Hydraulic Unit to Master Brake Cylinder Secondary Piston Circuit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
6 - Hydraulic Unit to Master Brake Cylinder Primary Piston Circuit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
Tightening Specifications
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING

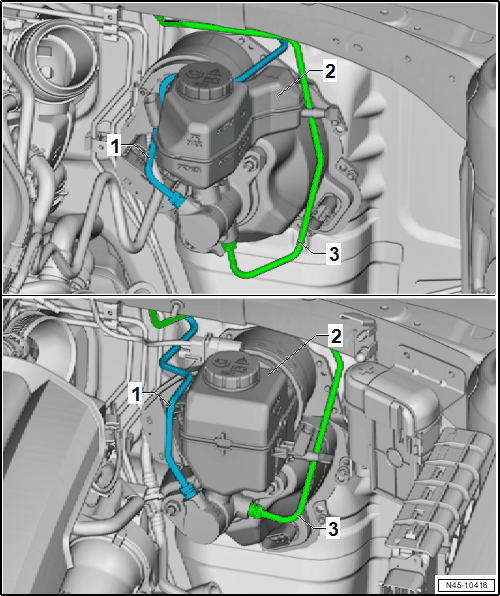

On tandem brake master cylinder:
1 - Master Brake Cylinder Secondary Piston Circuit to the ABS Hydraulic Unit -N55-.
2 - Brake Booster/Brake Master Cylinder
3 - Master Brake Cylinder Primary Piston Circuit to the ABS Hydraulic Unit -N55-.
Abbildung oben -
Vehicles without Biturbo Diesel Engine
Abbildung unten -
Vehicle with Biturbo Diesel Engine
Tightening Specifications
