Overview - Rear Side Windows, ARTEON

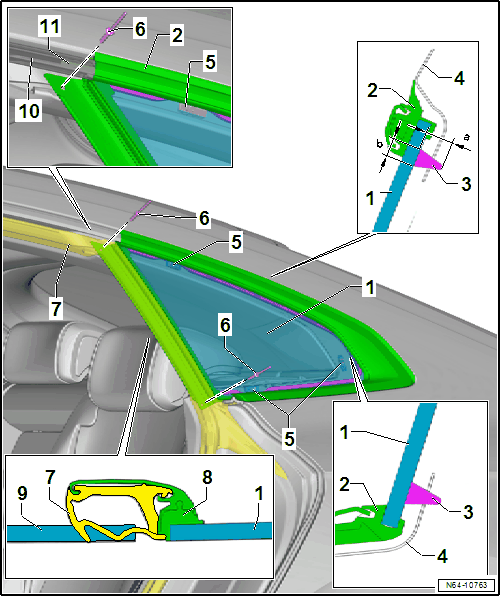

GWWN64-10763Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Side Window
  2. Seal
  3. PUR Adhesive Sealant
    • Bead diameter: height = 10 mm -dimension a- width = 7 mm -dimension b- (including base coat, residual material on the window glass and window glass flange)
    • Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
  4. Body Flange
  5. Clip
    • Quantity: 2
    • Are a component of the side window
  6. Pop Rivet
    • Quantity: 2
  7. Inner Door Seal
  8. Frame
    • One component with the side window, not replaced separately
  9. Rear Door Window
  10. Roof Trim Molding
  11. Guide
