Massage Function Control Module -J740-, REMOVING AND INSTALLING: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

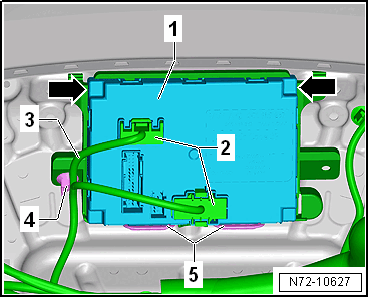

-- Unclip the wiring harness -3- from the bracket.

-- To do so, pry out the wiring bracket -4- using the :3409  .

-- Release and disconnect the connectors -2-.

-- Release the Massage Function Control Module -J740- -1- from the mounting tabs -5-.

-- Pull the Massage Function Control Module -J740- -1- out of the mounts -arrows-.
