Infotainment System Display Knob, Replacing

Special tools and workshop equipment required

• Pliers:T40172C

Procedure

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

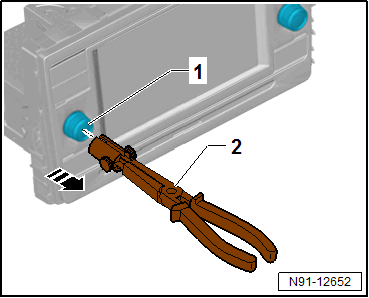

-- Remove the knob -1- using the pliers -2- straight in the direction of -arrow- from the mount.

-- Press on the new knob opposite the direction of -arrow- straight on the mount on the display.

• The knob must engage securely in the mount on the display.
