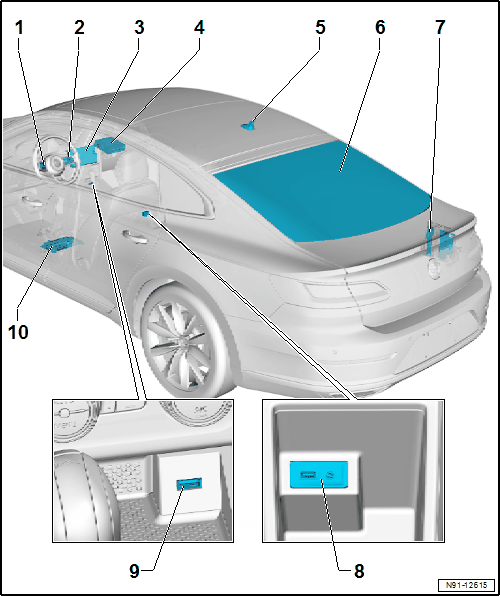

Component Location Overview - Infotainment System
- Left Multifunction Buttons on Steering Wheel -E440-
- Removing and Installing. Refer to Left Multifunction Buttons on Steering Wheel -E440- /Right Multifunction Buttons on Steering Wheel -E441-, REMOVING AND INSTALLING .
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to Left Multifunction Buttons on Steering Wheel -E440- /Right Multifunction Buttons on Steering Wheel -E441-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Replace the Front Information Display Control Head -J685- knob. Refer to INFOTAINMENT SYSTEM DISPLAY KNOB, REPLACING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Roof Antenna -RX5-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Rear Window Antenna
- TV Tuner -RX6-
- Removing and Installing. .
- Connection for External Multimedia Devices
- In the rear center console storage compartment
- Depending on the vehicle equipment:
- External Audio Source Connection -R199-
- USB Connection 1 -U41-
- Removing and Installing. Refer to EXTERNAL MULTIMEDIA DEVICE CONNECTION, REMOVING AND INSTALLING, USB Connection 1 -U41- AND External Audio Source Connection -R199- IN REAR CENTER CONSOLE STORAGE COMPARTMENT .
- USB Connection 2 -U42-
- In the front center console storage compartment
- Removing and Installing. Refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES, REMOVING AND INSTALLING, USB Connection 2 -U42- IN FRONT CENTER CONSOLE STORAGE COMPARTMENT .
- Digital Sound System Control Module -J525-
- Under the left front seat
- Removing and Installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
