Parking Aid / Parallel Parking Assistance Control Module, Removing And Installing, LHD: Removing

-- Remove the footwell cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

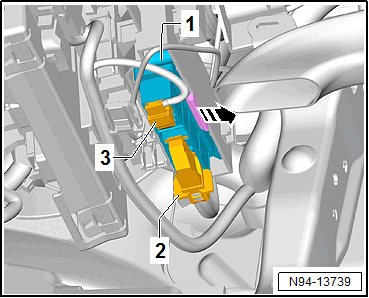

-- Release and disconnect the connectors -2- and -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retaining tab in the -direction of the arrow-.

-- Remove the control module -1- downward out of the bracket.
