Front Center Console Storage Compartment, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch off the ignition.

-- Remove the center console cover. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

>>High<<

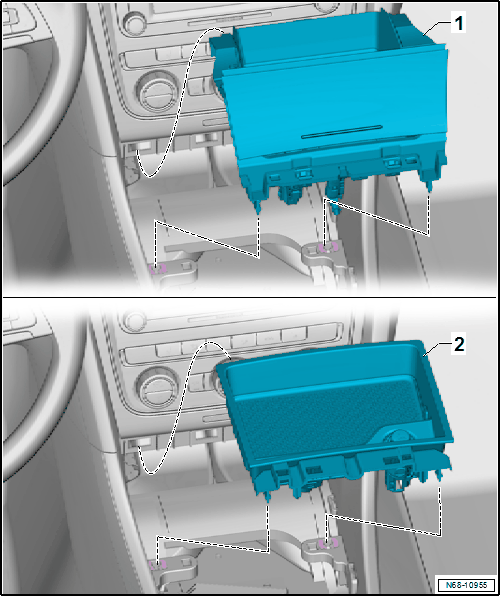

-- Detach the storage compartment -1- from the clips and remove it from the center console; depending on vehicle equipment, release and disconnect any wiring harnesses.

>>Basic<<

-- Detach the storage compartment -2- from the clips and remove it from the center console; depending on vehicle equipment, release and disconnect any wiring harnesses.
