Engine Cover, 2.5L SRE Gasoline, Removing And Installing: Removing

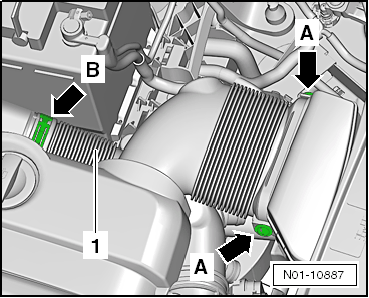

Fig 1: Identifying Screws On Air Intake -Arrow A- And Mass Airflow Sensor -Arrow B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws on the air intake -arrow A-.

-- Release the tension on the clamps on the mass airflow sensor -arrow B- using :VAS6499  and then slide clamps to the rear.

-- Remove the air intake hose -1-.

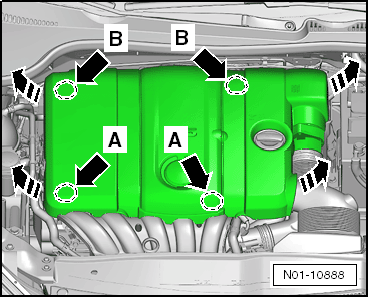

Fig 2: Identifying Engine Cover Attaching Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the engine cover at the mounting points -A arrows- from the retainer.

-- Lift the engine cover at the front.

-- Loosen the engine cover at the mounting points -B arrows- from the retainer.

-- Remove the engine cover upward.

Fig 3: Identifying Engine Cover Attaching Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
