Display Control Head, Removing And Installing: Removing

NOTE:

Perform the replace control module function, a basic setting and an adaptation "A/C compressor first start " either in Guided Fault Finding or in Guided Functions when installing a new Climatronic Control Module -J255- or A/C Control Module -J301-.

-- Remove the display control head trim. Refer to Center Console .

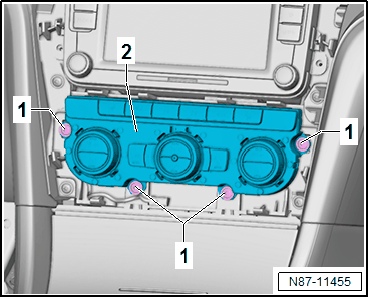

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Front A/C Display Control Head -E87- -2- from the instrument panel.

-- Disconnect the connectors on the Front A/C Display Control Head -E87- -2-.
