Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING: Removing

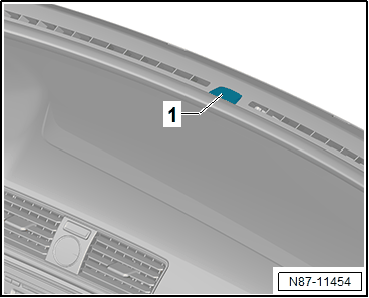

-- Unclip sunlight photo sensor -1- from instrument panel using an appropriate tool.

GWWN87-11454Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the sunlight photo sensor.
