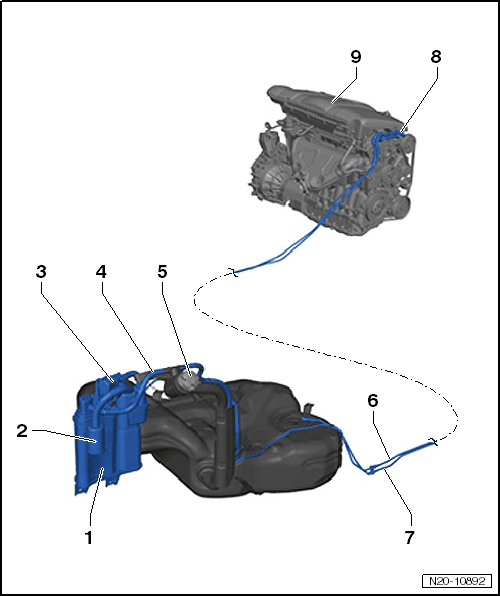

Overview - EVAP System
- EVAP Canister
- Component location: under the wheel housing liner inside right rear wheel housing
- Removing and Installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING
- Air Filter
- For the Leak Detection Pump -V144-
- Leak Detection Pump -V144-
- Component location: under the wheel housing liner inside right rear wheel housing
- Check using the Vehicle Diagnostic Tester.
- Removing and Installing. Refer to LEAK DETECTION PUMP, REMOVING AND INSTALLING
- Breather Line
- From the filler neck to the EVAP canister
- Filler Neck
- Fuel Supply Line
- Black
- Breather Line
- White
- EVAP Canister Purge Regulator Valve 1 -N80-
- Check using the Vehicle Diagnostic Tester.
- Throttle Valve Control Module -J338-
