Window Guide, Removing And Installing: Removing

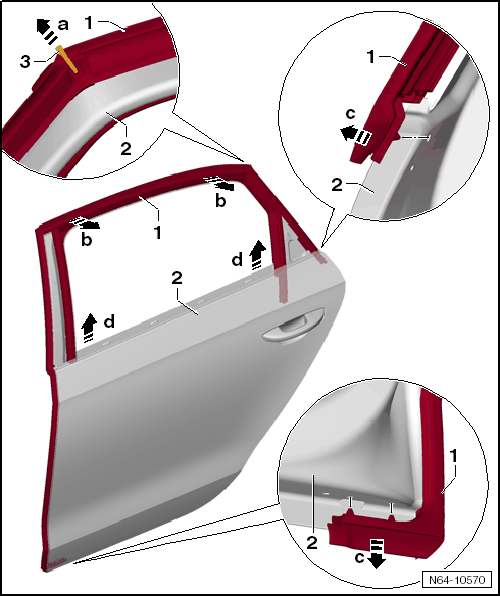

Fig 1: Identifying Door Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the door window. Refer to REAR DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the B-pillar trim. Refer to REAR DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the C-pillar trim. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the clip -3- in direction of -arrow a-.

-- Unclip the door seal in direction of -arrow c-.

-- Roll the window guide sealing lip -1- off the door flange from the inside.

-- Remove the window guide -1- from the door flange all the way around in direction of -arrows b-.

-- Remove the window guide -1- from the mounts on the rear door -2- in direction of -arrows d-.
