Mounting Bracket, Removing And Installing: Removing

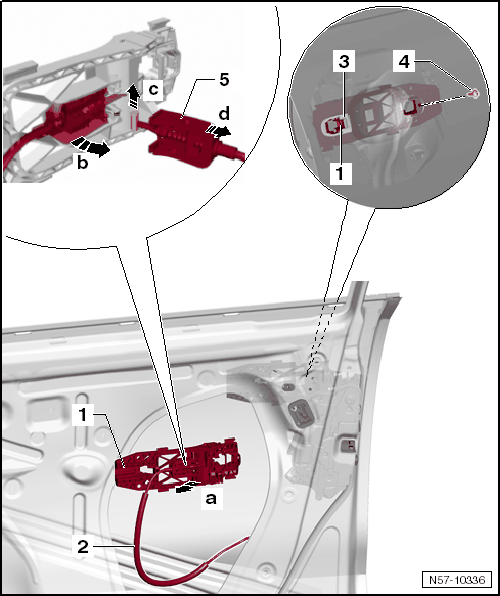

Fig 1: Installing Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

-- Remove the lock cylinder (refer to LOCK CYLINDER, REMOVING AND INSTALLING ) or the housing (refer to DOOR HANDLE CAP, REMOVING AND INSTALLING, WITHOUT LOCK CYLINDER ).

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

-- Remove the bolt -4- and remove the backing plate -3-.

-- Remove the mounting bracket -1- from the front door in direction of -arrow a-.

Cable, Loosening

-- Release the retainer -5- and pivot it out of the mount in the mounting bracket in direction of -arrow b-.

-- Lift the pin for the cable out of the mount in direction of -arrow c-.

-- Remove the cable -2- from the mounting bracket -1- in direction of -arrow d-.
