Inner Window Shaft Strip, Removing And Installing: Removing

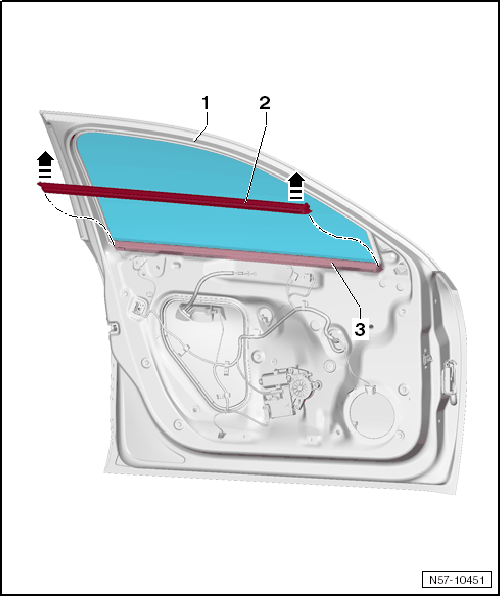

Fig 1: Identifying Inner Window Shaft Strip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the inner window shaft strip -2- evenly from the flange -3- on the front door -1- in the direction of -arrow- without bending it.
