Inner Window Shaft Strip, Removing And Installing: Installing

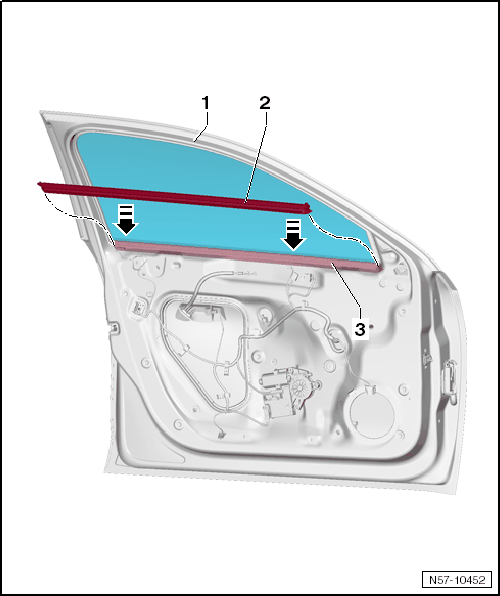

Fig 1: Identifying Inner Window Shaft Strip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the window shaft strip -2- evenly by hand onto the flange -3- on the front door -1- starting at the B-pillar.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
