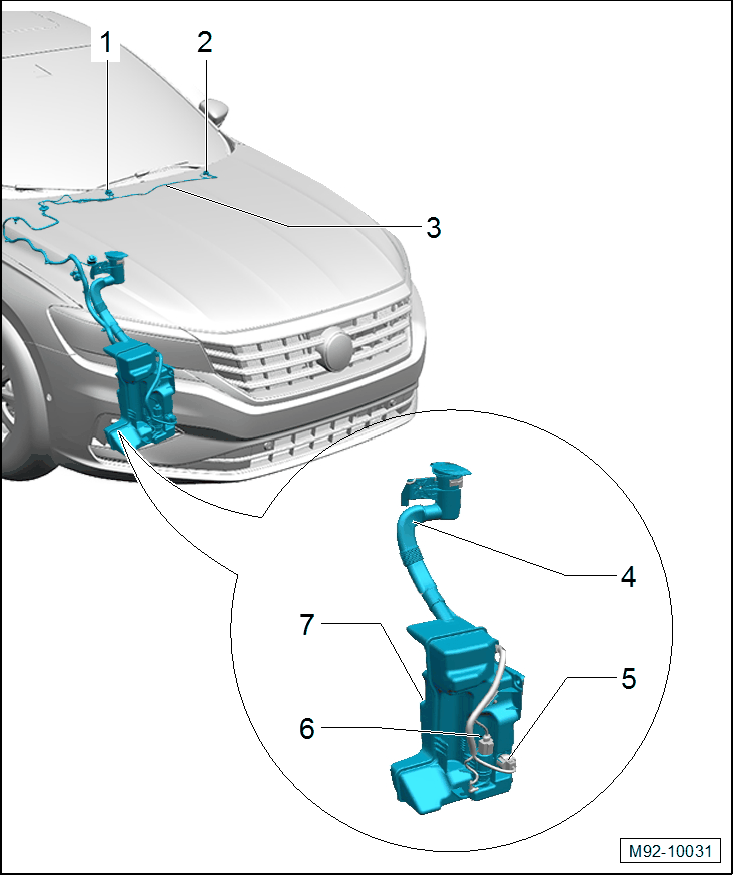

Overview - Windshield Washer System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Right Windshield Washer Spray Nozzle
   • Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
   • Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
2. Left Windshield Washer Spray Nozzle
   • Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
   • Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
3. Hose
   • Hose repair. Refer to WASHER FLUID HOSES, SERVICING .
4. Filler Tube for Windshield Washer and Headlamp Washer System Fluid Reservoir
   • Do not separate the filler tube from the reservoir.
5. Windshield Washer Fluid Level Sensor -G33-
   • Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
6. Windshield Washer Pump -V5-
   • Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
7. Windshield Washer and Headlamp Washer System Fluid Reservoir
   • Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

No Illustration

• Windshield and headlamp washer fluid reservoir to body: 8 Nm
