Component Location Overview - Sound System
NOTE:
The illustration shows the speakers on the left side.
The right speakers are identical.

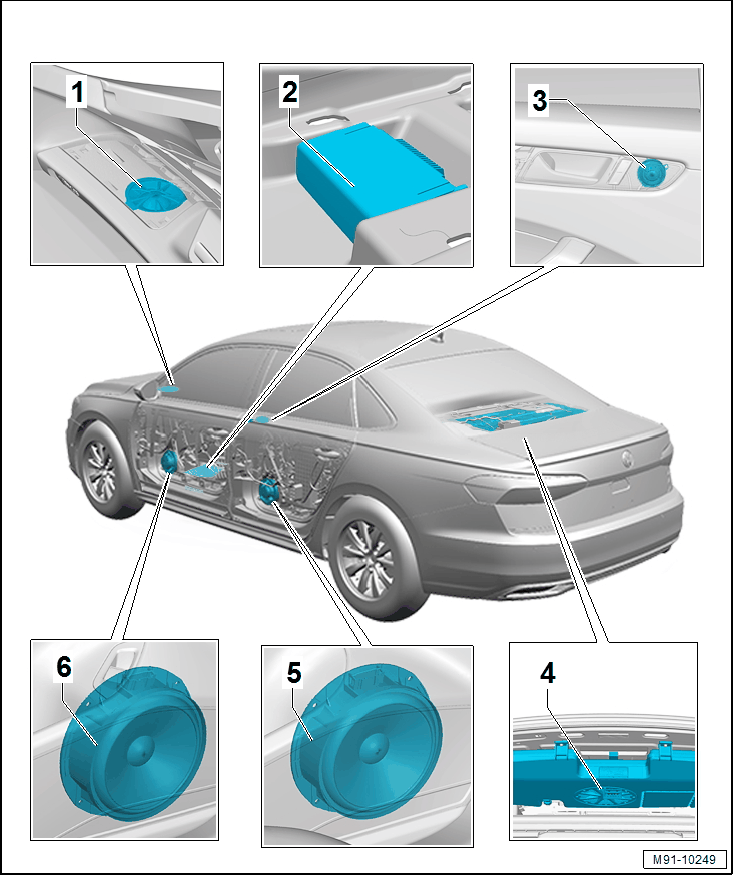

- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- Installed inside the instrument panel
- Removing and installing. Refer to Left Front Treble Speaker -R20- / Right Front Treble Speaker -R22-, REMOVING AND INSTALLING .
- Amplifier -R12-
- Under the left front seat
- Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
- Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Installed inside the rear door panels
- Removing and installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
- Speaker screw tightening specification: 2 Nm.
- Subwoofer -R211-
- Installed in luggage compartment under rear shelf
- Removing and installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
- Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
- Installed inside the rear doors
- Removing and installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING .
- Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
- Installed inside the front doors
- Removing and installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING .
