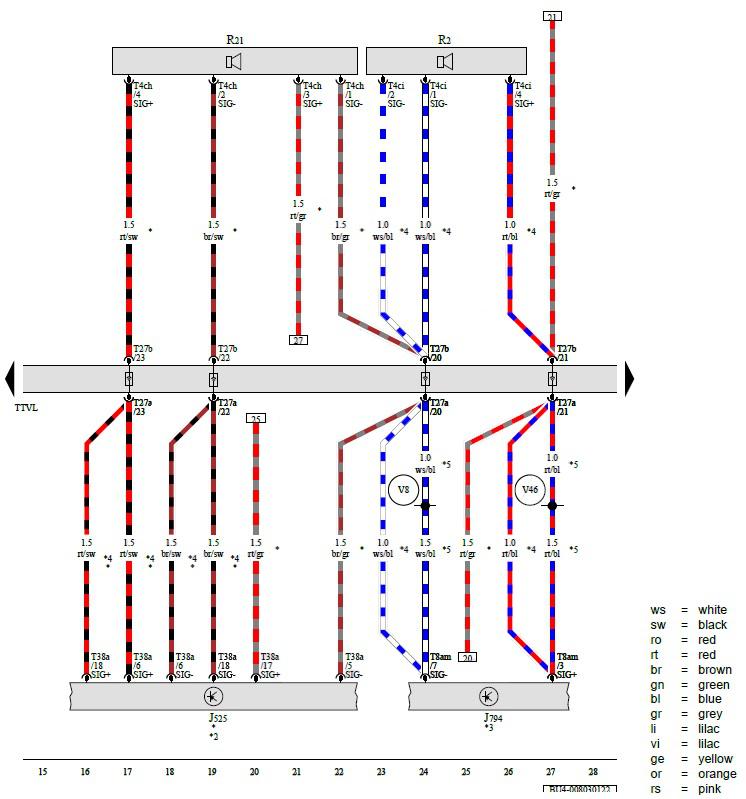

Digital Sound System Control Module, Information Electronics Control Module 1, Left Front Speaker, Left Front Bass Speaker
J525 - Digital Sound System Control Module
J794 - Information Electronics Control Module 1
R2 - Left Front Speaker
R21 - Left Front Bass Speaker
T4ch - 4-Pin Connector, Black
T4ci - 4-Pin Connector, Black
T8am - 8-Pin Connector, Brown
T27a - 27-Pin Connector, Black
T27b - 27-Pin Connector, Black
T38a - 38-Pin Connector, Black
TTVL - Left Front Door Coupling Point
V8 - Left Front Speaker Negative Connection (in Speaker Wiring Harness)
V46 - Left Front Speaker Connection (in Speaker Wiring Harness)
* - For Vehicles with Sound System
*2 - Refer to Applicable Sound System Wiring Diagram
*3 - Refer to the Applicable Multimedia System Wiring Diagram
*4 - Depending on Equipment
*5 - For Vehicles with 6 Speakers
