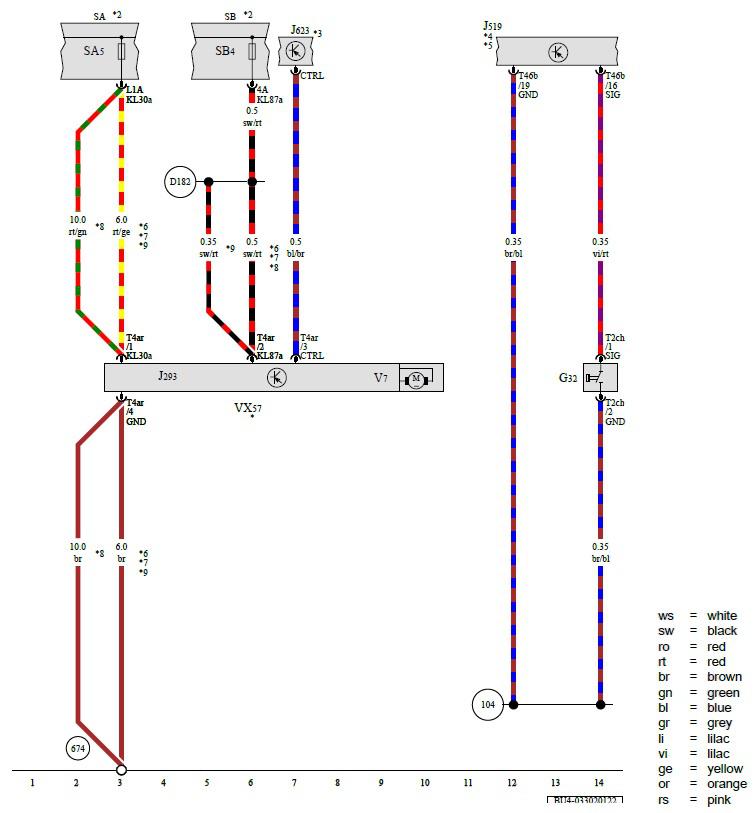

Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module, Fuse Panel A, Fuse Panel B, Radiator Fan
G32 - Engine Coolant Level Sensor
J293 - Radiator Fan Control Module
J519 - Vehicle Electrical System Control Module
J623 - Engine/Motor Control Module
SA - Fuse Panel A
SA5 - Fuse 5 (On Fuse Panel A)
SB - Fuse Panel B
SB4 - Fuse 4 (On Fuse Panel B)
T2ch - 2-Pin Connector, Black
T4ar - 4-Pin Connector, Black
T46b - 46-Pin Connector, Black
V7 - Radiator Fan
VX57 - Radiator Fan
104 - Ground Connection (in Right Front Wiring Harness), Sensor Grounds
674 - Ground Connection 4 on Left Front Longitudinal Member
D182 - Connection 3 (87A) (in Engine/Motor Compartment Wiring Harness
* - Pre-Wired Component
*2 - Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Component
*3 - Refer to Applicable Engine Wiring Diagram
*4 - Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*5 - Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*6 - For Vehicles with a 1.4L Engine
*7 - For Vehicles with 2.0L Gasoline Engine
*8 - For Vehicles with 1.5L Gasoline Engine
*9 - For Vehicles with a 1.6L Engine
