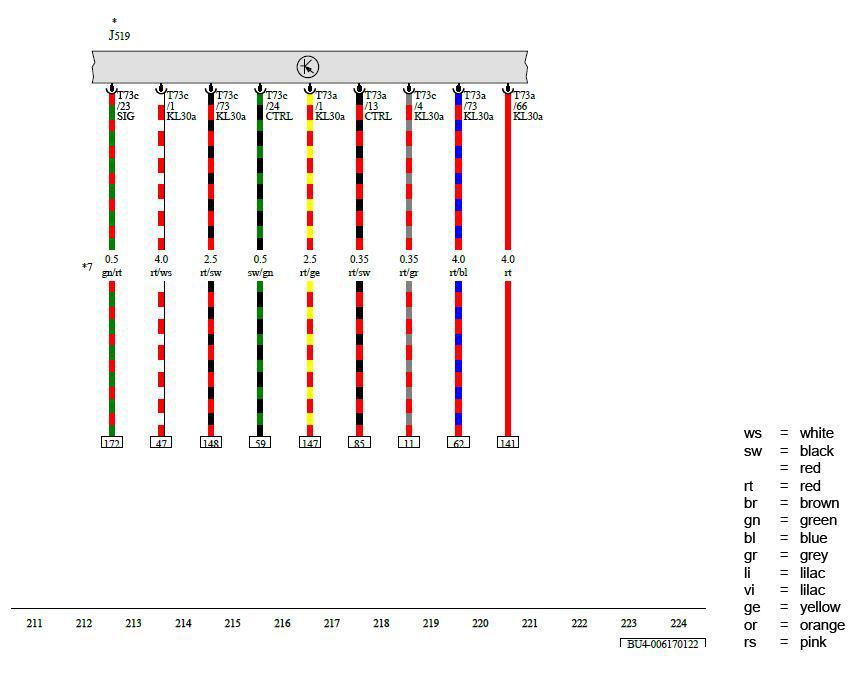

Vehicle Electrical System Control Module

G00618708Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519  Vehicle Electrical System Control Module

T73a  73-Pin Connector, Black

T73c  73-Pin Connector, Black

*  Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
