Gearshift Knob, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

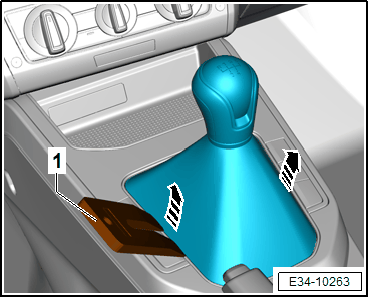

-- Carefully pry off the shift lever boot from the center console insert in direction of -arrow- -1-, using the Trim Removal Wedge: T10383/1  .

-- Roll the selector lever boot up over the gearshift knob.

Fig 1: Identifying Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the clamp -arrow- and remove the gearshift lever knob with the shift lever boot.
