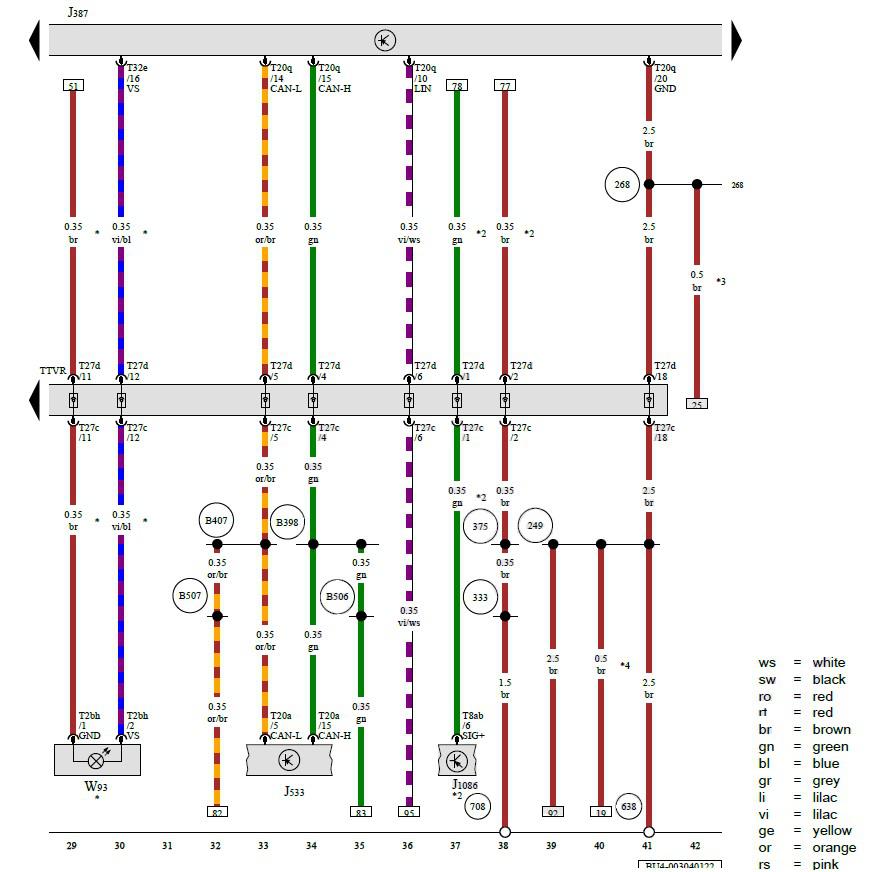

Front Passenger Door Control Module, Data Bus on Board Diagnostic Interface, Blind Spot Detection Control Module, Passenger Side Entry Lamp
J387 Front Passenger Door Control Module
J533 Data Bus on Board Diagnostic Interface
J1086 Blind Spot Detection Control Module
T2bh 2-Pin Connector, Black
T8ab 8-Pin Connector, Black
T20a 20-Pin Connector, Black
T20q 20-Pin Connector, White
T27c 27-Pin Connector, Black
T27d 27-Pin Connector, Black
T32e 32-Pin Connector, Blue
TTVR Right Front Door Coupling Point
W93 Passenger Side Entry Lamp
249 Ground Connection 2 (in Interior Wiring Harness)
268 Ground Connection 2 (in Front Passenger Door Wiring Harness)
333 Ground Connection 5 (in Rear Wiring Harness)
375 Ground Connection 10 (in Main Wiring Harness)
638 Ground Connection on Right A-Pillar
708 Ground Connection 2 on Right Rear Chassis Side Member
B398 Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506 Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 Comfort CAN Bus Low Connection (in Interior Wiring Harness)
* Depending on Equipment
*2 For Vehicles with Blind Spot Detection
*3 For Vehicles with Ambient Lighting
*4 For Vehicles with Access/Start Authorization System
