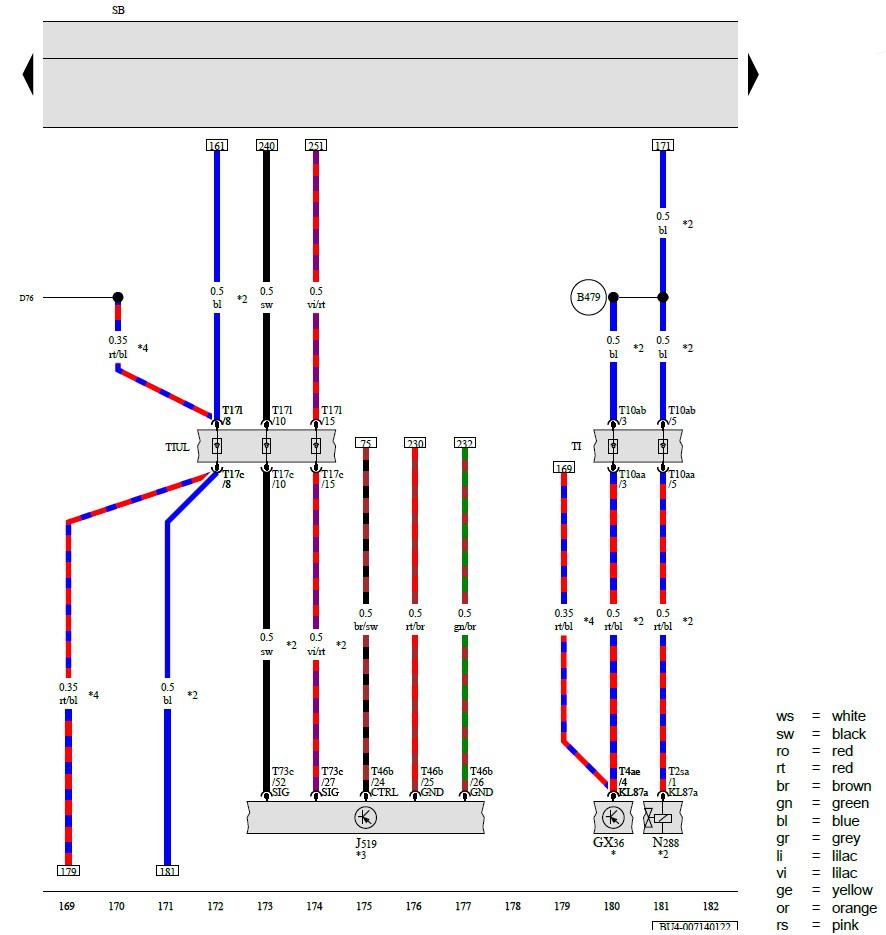

Fuel Tank Leak Detection Module, Vehicle Electrical System Control Module, Tank Switch-Off Valve, Fuse Panel B
GX36 - Fuel Tank Leak Detection Module
J519 - Vehicle Electrical System Control Module
N288 - Tank Switch-Off Valve
SB - Fuse Panel B
T2sa - 2-Pin Connector, Gray
T4ae - 4-Pin Connector, Black
T10aa - 10-Pin Connector, Black
T10ab - 10-Pin Connector, Black
T17c - 17-Pin Connector, Red
T17l - 17-Pin Connector, Red
T46b - 46-Pin Connector, Black
T73c - 73-Pin Connector, Black
TI - Coupling Point in Interior
TIUL - Coupling Point in Interior, Bottom Left
B479 - Connection 15 (in Main Wiring Harness)
D76 - Recirculation Pump Connection (in Engine/Motor Compartment Wiring Harness)
* - Refer to Applicable Engine Wiring Diagram
*2 - For Vehicles with 1.5L Gasoline Engine
*3 - Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*4 - For Vehicles with 2.0L Gasoline Engine
