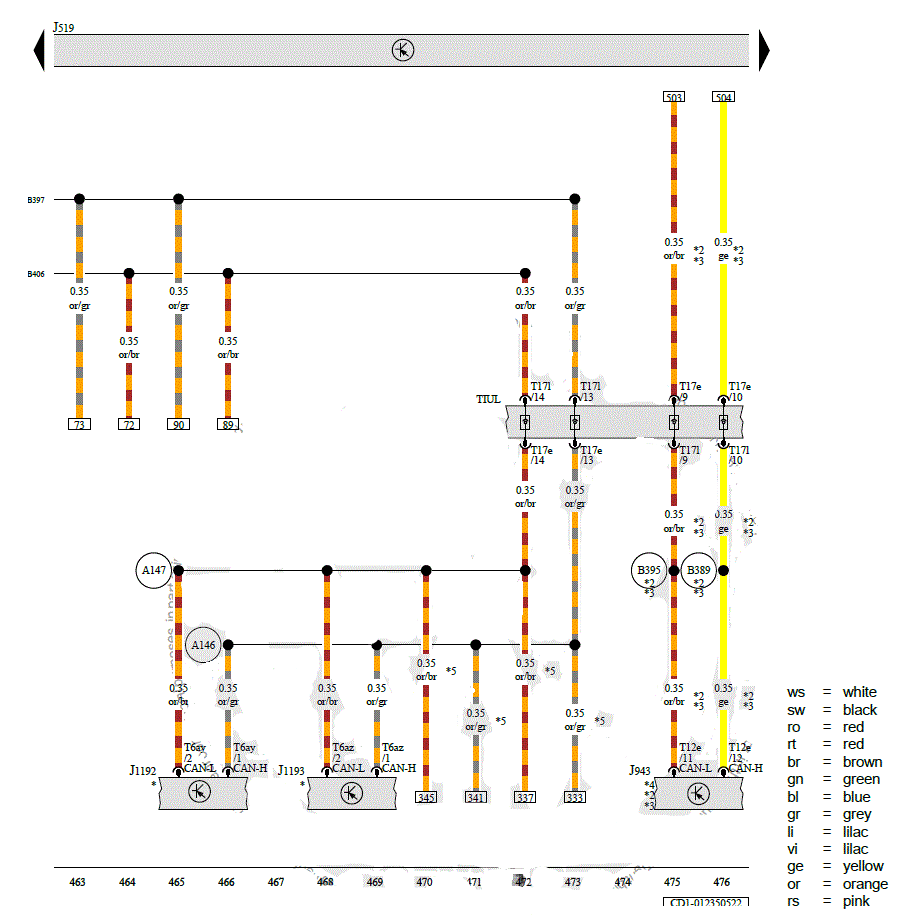

Vehicle Electrical System Control Module, Engine Sound Generator Control Module, Burglary Protection Control Module 2, Burglary Protection Control Module 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

J943

Engine Sound Generator Control Module

J1192

Burglary Protection Control Module 2

J1193

Burglary Protection Control Module 3

T6ay

6-Pin Connector, Black

T6az

6-Pin Connector, Black

T12e

12-Pin Connector, Black

T17e

17-Pin Connector, Green

T17l

17-Pin Connector, Green

TIUL

Coupling Point in Interior, Bottom Left

A146

Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)

A147

Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)

B389

Powertrain CAN Bus High Connection 7 (in Main Wiring Harness)

B395

Powertrain CAN Bus Low Connection 6 (in Main Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

*

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

For Vehicles with Hybrid Drive

*3

From July 2020

*4

Refer to the Applicable Engine Sound Generator Wiring Diagram

*5

For Vehicles with Access/Start Authorization System
