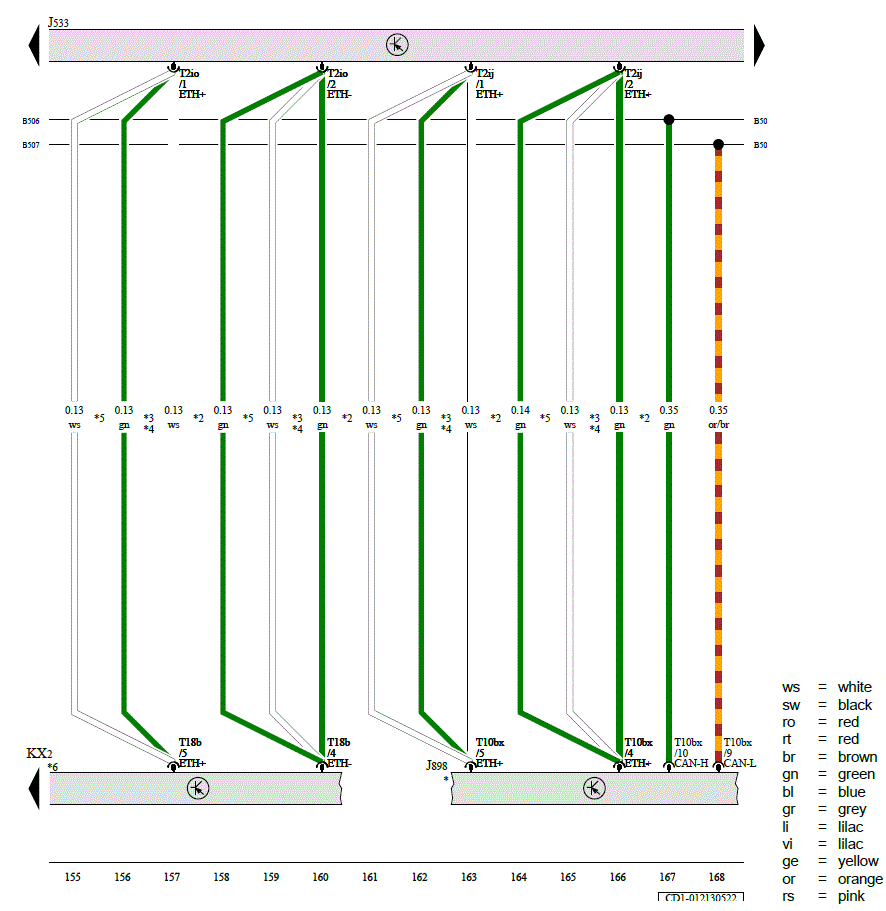

Data Bus on Board Diagnostic Interface, Windshield Projection Head Up Display Control Module, Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J898

Windshield Projection Head Up Display Control Module

KX2

Instrument Cluster

T2ij

2-Pin Connector, White

T2io

2-Pin Connector, White

T10bx

10-Pin Connector, Black

T18b

18-Pin Connector, Black

B506

Comfort CAN Bus High Connection (in Interior Wiring Harness)

B507

Comfort CAN Bus Low Connection (in Interior Wiring Harness)

*

Refer to Applicable Windshield Projection Wiring Diagram

*2

Through July 2020

*3

From July 2020

*4

Through November 2020

*5

From November 2020

*6

Refer to Applicable Wiring Diagram for Instrument Cluster
