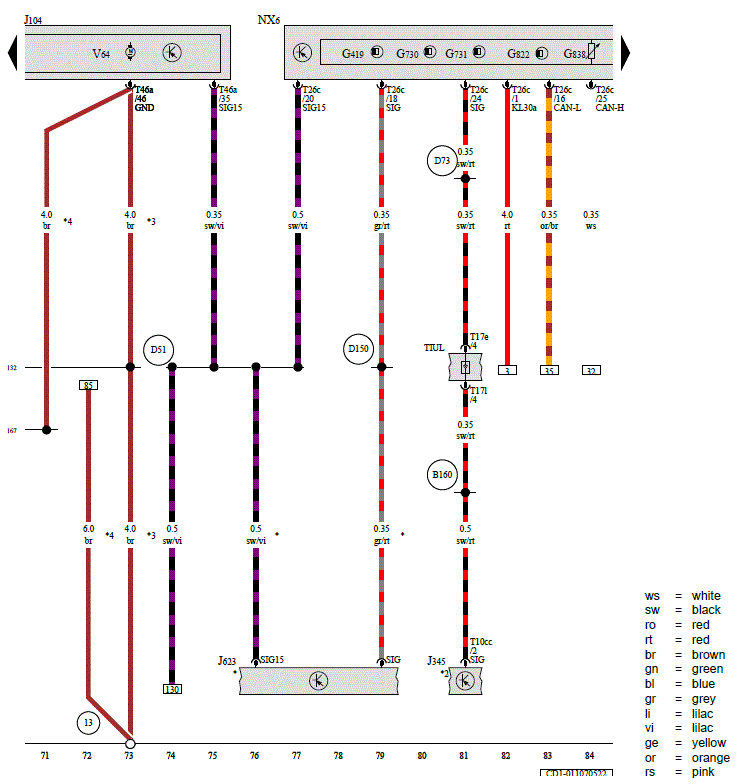

ABS Control Module, Towing Recognition Control Module, Engine/Motor Control Module, Brake Booster
G419
ESP Sensor Unit
G730
Power Supply Sensor 1
G731
Power Supply Sensor 2
G822
Brake Booster Voltage Sensor
G838
Brake Booster Temperature Sensor 1
J104
ABS Control Module
J345
Towing Recognition Control Module
J623
Engine/Motor Control Module
NX6
Brake Booster
T10cc
10-Pin Connector, Black
T17e
17-Pin Connector, Green
T17l
17-Pin Connector, Green
T26c
26-Pin Connector, Black
T46a
46-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
V64
ABS Hydraulic Pump
13
Ground Connection in Engine/Motor Compartment, Right
132
Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)
167
Ground Connection 4 (in Engine/Motor Compartment Wiring Harness)
B160
Brake System Monitoring Connection (in Interior Wiring Harness)
D51
Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
D73
Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)
D150
Engine Brake Connection (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Engine Wiring Diagram
*2
Refer to the Wiring Diagram for Trailer Towing
*3
For LHD Vehicles
*4
For RHD Vehicles
