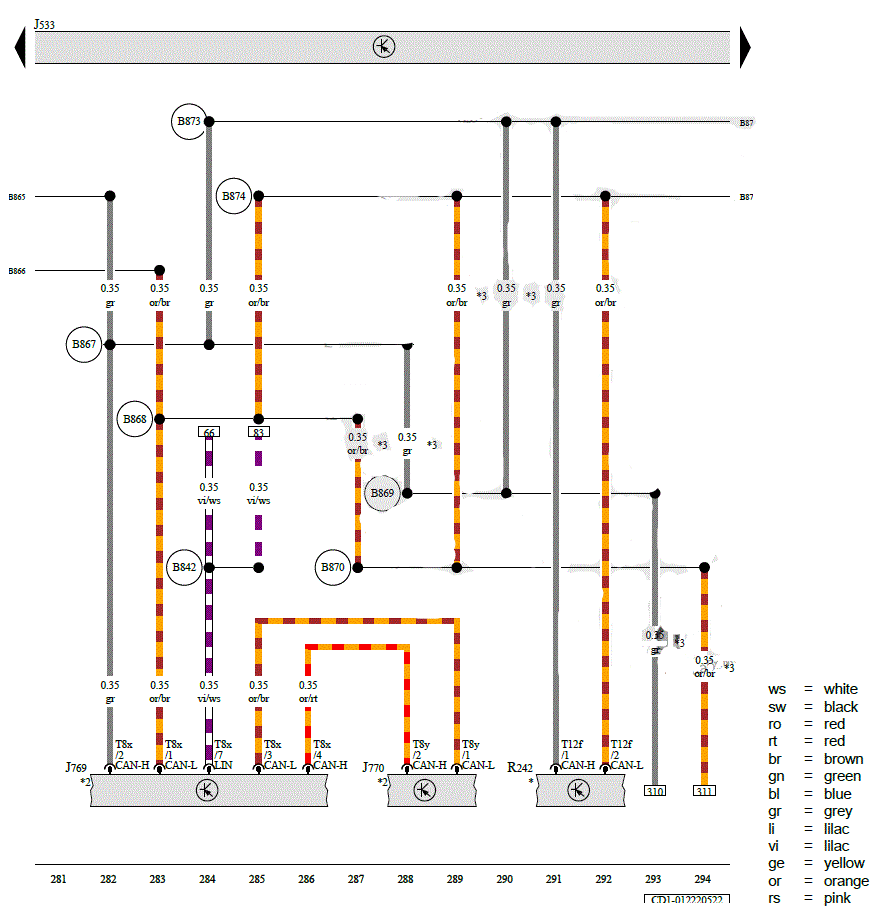

Data Bus on Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Driver Assistance Systems Front Camera
J533
Data Bus on Board Diagnostic Interface
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
R242
Driver Assistance Systems Front Camera
T8x
8-Pin Connector, Black
T8y
8-Pin Connector, Black
T12f
12-Pin Connector, Brown
B842
LIN Bus Connection 8 (in Main Wiring Harness)
B865
Driver Assistance Systems CAN Bus High Connection 1 (in Main Wiring Harness)
B866
Driver Assistance Systems CAN Bus Low Connection 1 (in Main Wiring Harness)
B867
Driver Assistance Systems CAN Bus High Connection 2 (in Main Wiring Harness)
B868
Driver Assistance Systems CAN Bus Low Connection 2 (in Main Wiring Harness)
B869
Driver Assistance Systems CAN Bus High Connection 3 (in Main Wiring Harness)
B870
Driver Assistance Systems CAN Bus Low Connection 3 (in Main Wiring Harness)
B873
Driver Assistance Systems CAN Bus High Connection 5 (in Main Wiring Harness)
B874
Driver Assistance Systems CAN Bus Low Connection 5 (in Main Wiring Harness)
*
Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram
*2
Refer to Applicable Lane Change Assistance Wiring Diagram
*3
For RHD Vehicles
