Vehicle Data Label

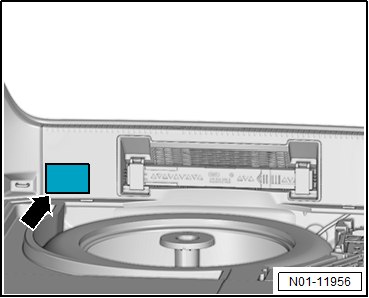

The vehicle data label -arrow- is located in the luggage compartment on the lock carrier cover. The vehicle data label is also in the customer maintenance schedule.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The label contains the following vehicle data:

Fig 1: Vehicle Data Label

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -

Vehicle Identification Number (VIN)

2 -

Vehicle Model, Engine Output, Transmission

3 -

Engine and Transmission Codes, Paint Number, Interior Equipment

4 -

Optional Equipment, PR Numbers

The sticker in the maintenance schedule or in the Owner's Manual have the same data. The legend is under the sticker.
