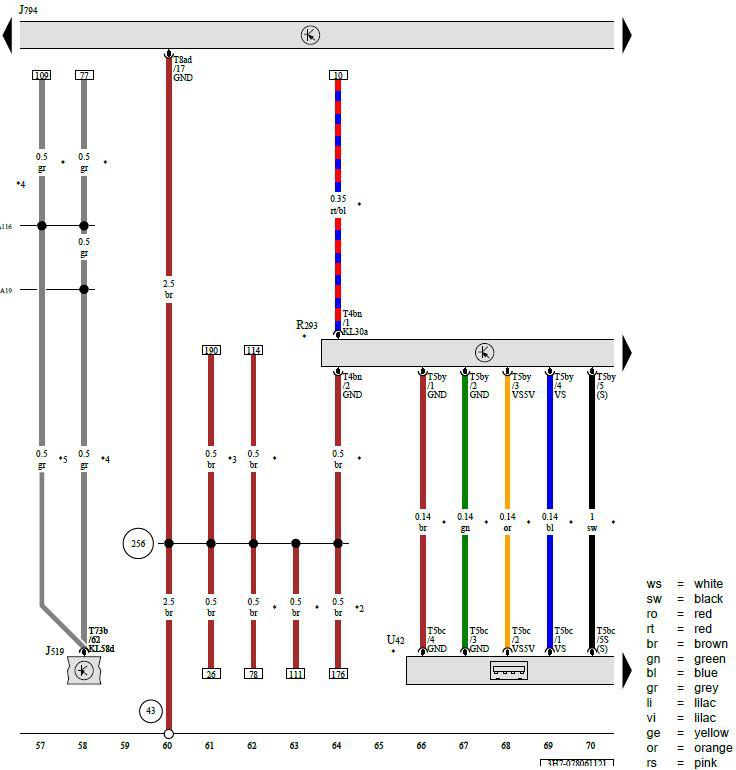

Vehicle Electrical System Control Module, Information Electronics Control Module 1, USB Distributor, USB Connection 2
J519 - Vehicle Electrical System Control Module
J794 - Information Electronics Control Module 1
R293 - USB Distributor
T4bn - 4-Pin Connector, Red
T5bc - 5-Pin Connector, Green
T5by - 5-Pin Connector, Brown
T8ad - 8-Pin Connector, Black
T73b - 73-Pin Connector, Black
U42 - USB Connection 2
43 - Ground Connection on A-Pillar, Lower Right
256 - Ground Connection 2 (in Radio Wiring Harness)
A19 - Connection 58d (in Instrument Panel Wiring Harness)
A116 - Connection 58d (in Instrument Panel Wiring Harness) 2
* - Depending on Equipment
*2 - For Vehicles with Japan Equipment
*3 - For Vehicles with TV Tuner
*4 - Through November 2020
*5 - From November 2020
