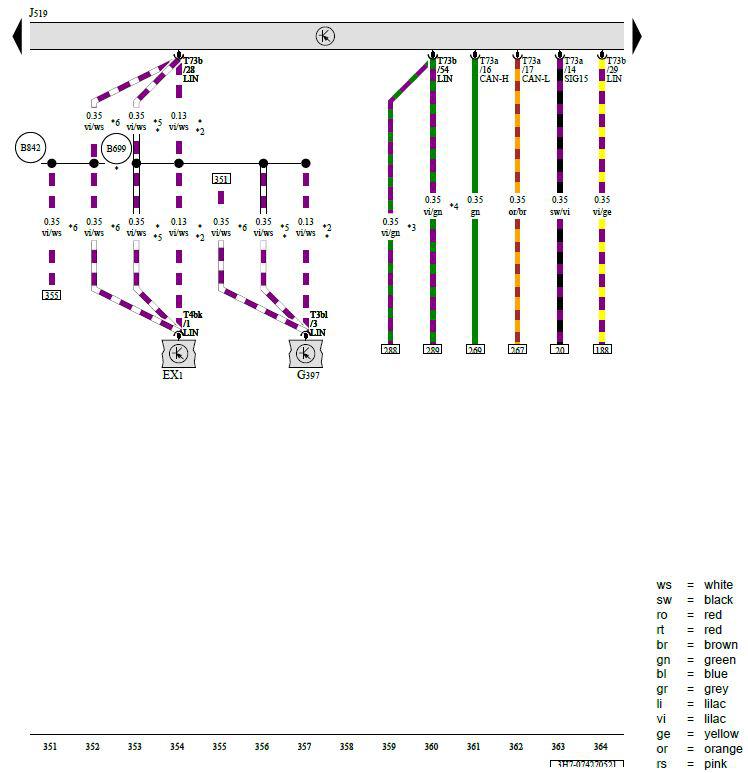

Rotary Light Switch, Rain/Light Recognition Sensor, Vehicle Electrical System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX1 -  Rotary Light Switch

G397 -  Rain/Light Recognition Sensor

J519 -  Vehicle Electrical System Control Module

T3bl -  3-Pin Connector, Black

T4bk -  4-Pin Connector, Black

T73a -  73-Pin Connector, Black

T73b -  73-Pin Connector, Black

B699 -  LIN Bus Connection 4 (in Main Wiring Harness)

B842 -  LIN Bus Connection 8 (in Main Wiring Harness)

* -  Sedan

*2 -  Through July 2020

*3 -  For Vehicles Without Heated Steering Wheel

*4 -  For Vehicles with Heated Steering Wheel

*5 -  From July 2020

*6 -  Sportback
