Adjusting Angle

Special tools and workshop equipment required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Adjustment Dimensions

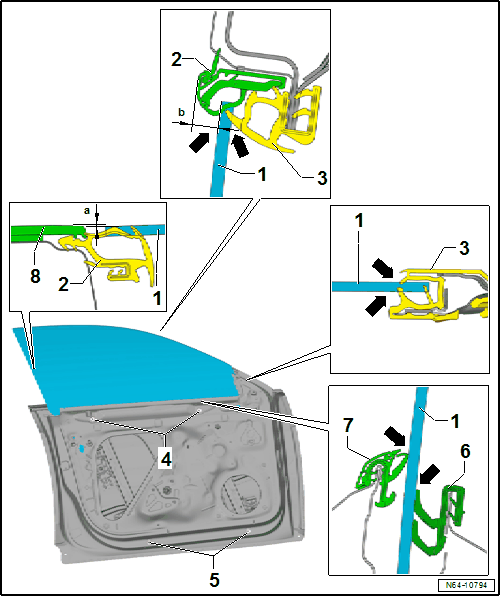

The door window must enter 10 mm -dimension b- into the seal of the window molding.
The window must rest against the outside of front window guide -3- -arrows-.
The offset to the B-pillar trim -8- is 1 mm -dimension a-.

-- Loosen the nut -5-. Set the required dimensions using the adjusting screw in the nut -5-.

-- Tighten the nut -5-.

The door window must extend in the center -arrows- between inner -6- and outer window recess cover -7-.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Loosen the nut -4- with the : VAG1739 or : T10471 . Set the dimensions using the adjusting screw in the nut -4-.

-- Tighten the nuts -4-.

Tightening Specifications
